Documentation for AIXM 5.1.1
Definition Type: Element
Name: DerivedUnit
Namespace: http://www.opengis.net/gml/3.2
Type: gml:DerivedUnitType
Containing Schema: units.xsd
Abstract
Documentation:
Derived units are defined by combination of other units.  Derived units are used for quantities other than those corresponding to the base units, such as hertz (s-1) for frequency, Newton (kg.m/s2) for force.  Derived units based directly on base units are usually preferred for quantities other than the fundamental quantities within a system. If a derived unit is not the preferred unit, the gml:ConventionalUnit element should be used instead.
The gml:DerivedUnit extends gml:UnitDefinition with the property gml:derivationUnitTerms.

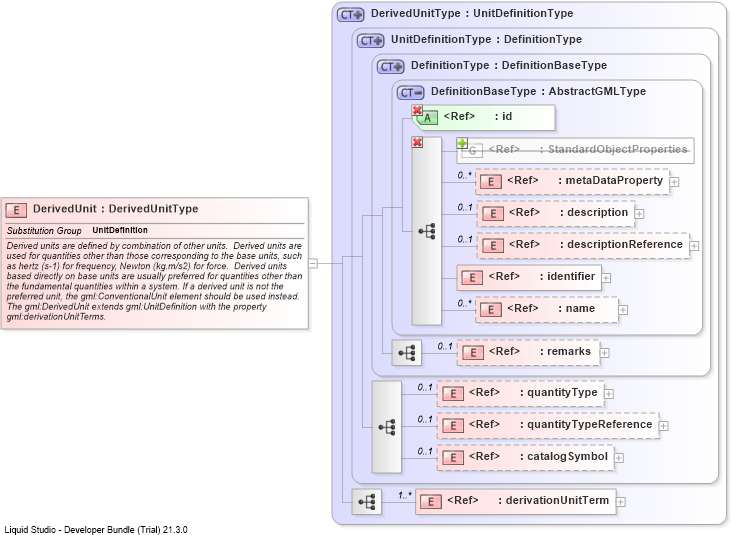

Collapse XSD Schema Diagram:
Drilldown into derivationUnitTermDrilldown into catalogSymbolDrilldown into quantityTypeReferenceDrilldown into quantityTypeDrilldown into remarksDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into DefinitionBaseTypeDrilldown into DefinitionTypeDrilldown into UnitDefinitionTypeDrilldown into DerivedUnitTypeXSD Diagram of DerivedUnit
Collapse XSD Schema Code:
<element name="DerivedUnit" type="gml:DerivedUnitType" substitutionGroup="gml:UnitDefinition">
    <annotation>
        <documentation>Derived units are defined by combination of other units.  Derived units are used for quantities other than those corresponding to the base units, such as hertz (s-1) for frequency, Newton (kg.m/s2) for force.  Derived units based directly on base units are usually preferred for quantities other than the fundamental quantities within a system. If a derived unit is not the preferred unit, the gml:ConventionalUnit element should be used instead.
The gml:DerivedUnit extends gml:UnitDefinition with the property gml:derivationUnitTerms.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
quantityType gml:quantityType 0 (1)
quantityTypeReference gml:quantityTypeReference 0 (1)
catalogSymbol gml:catalogSymbol 0 (1)
derivationUnitTerm gml:derivationUnitTerm (1) unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:UnitDefinition
