Documentation for AIXM 5.1.1
Definition Type: Group
Name: DesignatedPointPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

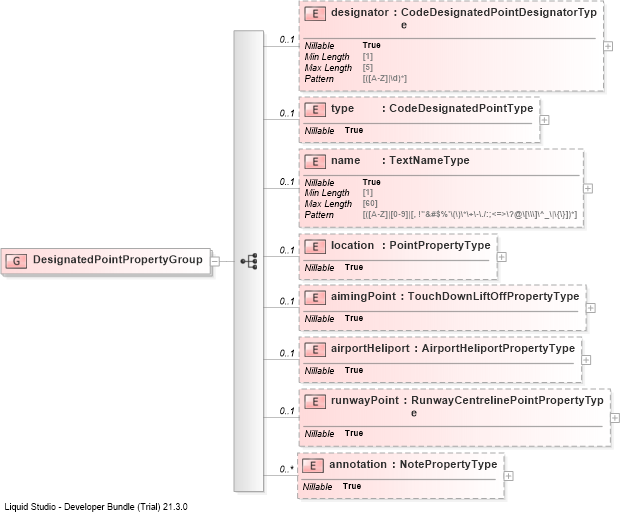

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into runwayPointDrilldown into airportHeliportDrilldown into aimingPointDrilldown into locationDrilldown into nameDrilldown into typeDrilldown into designatorXSD Diagram of DesignatedPointPropertyGroup
Collapse XSD Schema Code:
<group name="DesignatedPointPropertyGroup">
    <sequence>
        <element name="designator" type="aixm:CodeDesignatedPointDesignatorType" nillable="true" minOccurs="0" />
        <element name="type" type="aixm:CodeDesignatedPointType" nillable="true" minOccurs="0" />
        <element name="name" type="aixm:TextNameType" nillable="true" minOccurs="0" />
        <element name="location" type="aixm:PointPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="aimingPoint" type="aixm:TouchDownLiftOffPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="airportHeliport" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="runwayPoint" type="aixm:RunwayCentrelinePointPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
designator aixm:designator 0 (1)
type aixm:type 0 (1)
name aixm:name 0 (1)
location aixm:location 0 1
aimingPoint aixm:aimingPoint 0 1
airportHeliport aixm:airportHeliport 0 1
runwayPoint aixm:runwayPoint 0 1
annotation aixm:annotation 0 unbounded
