Documentation for AIXM 5.1.1
Definition Type: Element
Name: directedFace
Namespace: http://www.opengis.net/gml/3.2
Type: gml:DirectedFacePropertyType
Containing Schema: topology.xsd
Abstract
Documentation:
The gml:directedFace property element describes the boundary of topology solids, in the coBoundary of topology edges and is used in the support of surface features via the gml:TopoSurface expression, see below. The orientation attribute of type gml:SignType expresses the sense in which the included face is used i.e. inward or outward with respect to the surface normal in any geometric realisation.

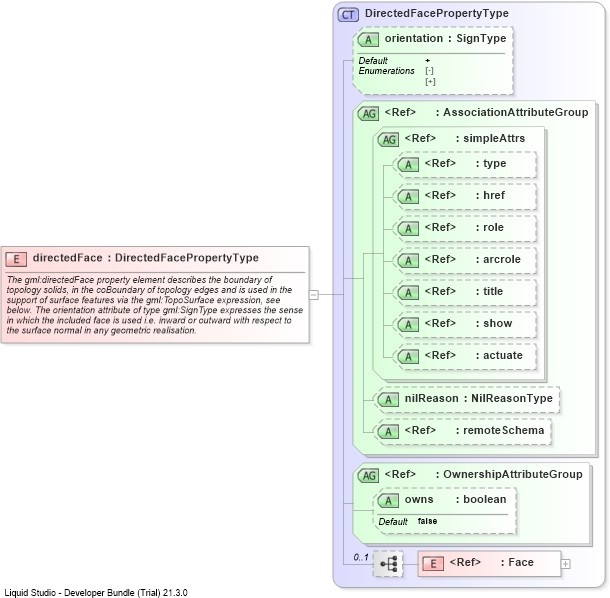

Collapse XSD Schema Diagram:
Drilldown into FaceDrilldown into ownsDrilldown into OwnershipAttributeGroupDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupDrilldown into orientationDrilldown into DirectedFacePropertyTypeXSD Diagram of directedFace
Collapse XSD Schema Code:
<element name="directedFace" type="gml:DirectedFacePropertyType">
    <annotation>
        <documentation>The gml:directedFace property element describes the boundary of topology solids, in the coBoundary of topology edges and is used in the support of surface features via the gml:TopoSurface expression, see below. The orientation attribute of type gml:SignType expresses the sense in which the included face is used i.e. inward or outward with respect to the surface normal in any geometric realisation.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Face gml:Face (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
orientation gml:orientation + (Optional)
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
owns gml:owns false (Optional)
Collapse Derivation Tree:
