Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: DirectFlightSegmentType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:AbstractDirectFlightType
Containing Schema: AIXM_Features.xsd
Abstract

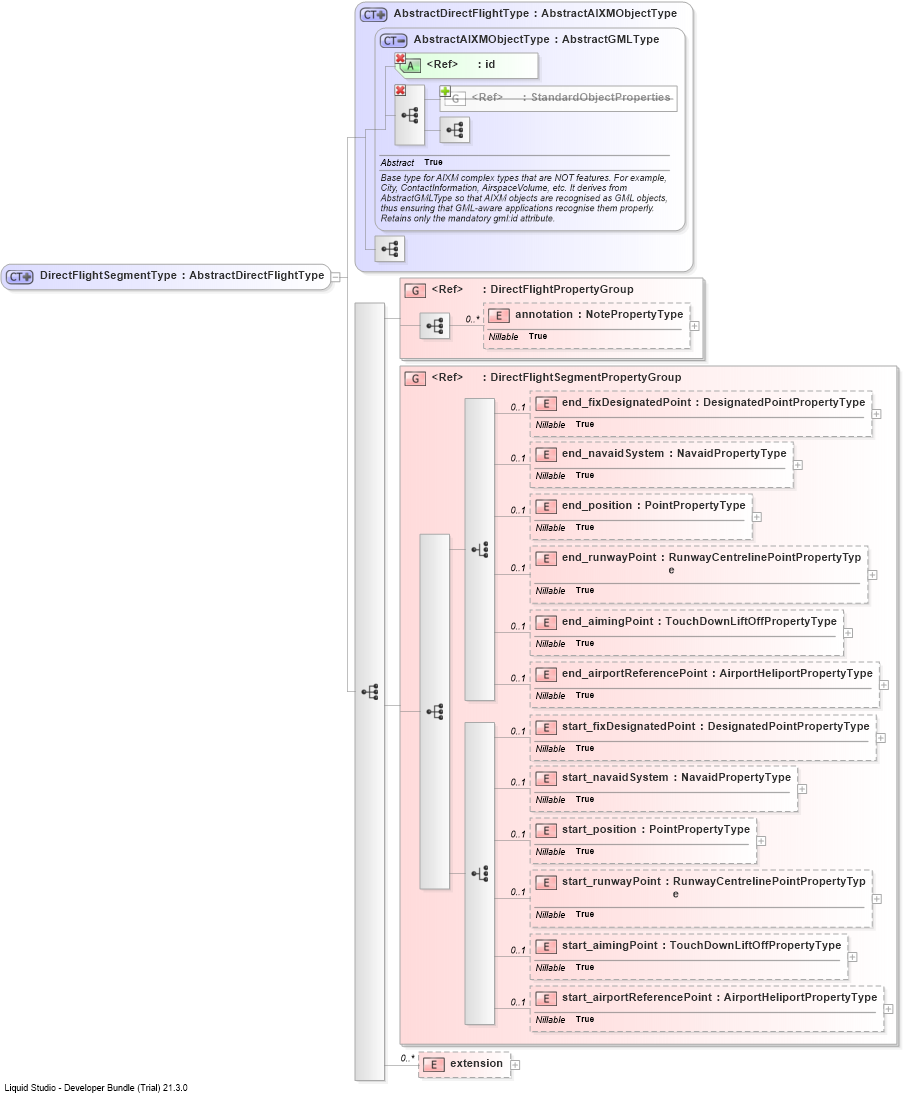

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into start_airportReferencePointDrilldown into start_aimingPointDrilldown into start_runwayPointDrilldown into start_positionDrilldown into start_navaidSystemDrilldown into start_fixDesignatedPointDrilldown into end_airportReferencePointDrilldown into end_aimingPointDrilldown into end_runwayPointDrilldown into end_positionDrilldown into end_navaidSystemDrilldown into end_fixDesignatedPointDrilldown into DirectFlightSegmentPropertyGroupDrilldown into annotationDrilldown into DirectFlightPropertyGroupDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMObjectTypeDrilldown into AbstractDirectFlightTypeXSD Diagram of DirectFlightSegmentType
Collapse XSD Schema Code:
<complexType name="DirectFlightSegmentType">
    <complexContent>
        <extension base="aixm:AbstractDirectFlightType">
            <sequence>
                <group ref="aixm:DirectFlightPropertyGroup" />
                <group ref="aixm:DirectFlightSegmentPropertyGroup" />
                <element name="extension" minOccurs="0" maxOccurs="unbounded">
                    <complexType>
                        <choice>
                            <element ref="aixm:AbstractDirectFlightExtension" />
                            <element ref="aixm:AbstractDirectFlightSegmentExtension" />
                        </choice>
                        <attributeGroup ref="gml:OwnershipAttributeGroup" />
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
annotation aixm:annotation 0 unbounded
end_fixDesignatedPoint aixm:end_fixDesignatedPoint 0 (1)
end_navaidSystem aixm:end_navaidSystem 0 (1)
end_position aixm:end_position 0 (1)
end_runwayPoint aixm:end_runwayPoint 0 (1)
end_aimingPoint aixm:end_aimingPoint 0 (1)
end_airportReferencePoint aixm:end_airportReferencePoint 0 (1)
start_fixDesignatedPoint aixm:start_fixDesignatedPoint 0 (1)
start_navaidSystem aixm:start_navaidSystem 0 (1)
start_position aixm:start_position 0 (1)
start_runwayPoint aixm:start_runwayPoint 0 (1)
start_aimingPoint aixm:start_aimingPoint 0 (1)
start_airportReferencePoint aixm:start_airportReferencePoint 0 (1)
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:DirectFlightPropertyGroup (1) (1)
<xs:group> aixm:DirectFlightSegmentPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:DirectFlightSegment
