Documentation for AIXM 5.1.1
Definition Type: Element
Name: domainOfValidity
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: referenceSystems.xsd
Abstract
Documentation:
The gml:domainOfValidity property implements an association role to an EX_Extent object as encoded in ISO/TS 19139, either referencing or containing the definition of that extent.

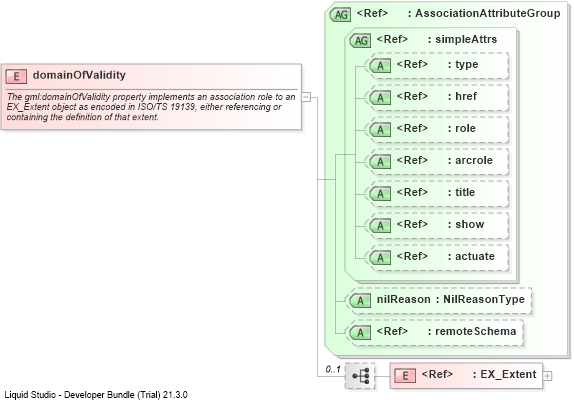

Collapse XSD Schema Diagram:
Drilldown into EX_ExtentDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupXSD Diagram of domainOfValidity
Collapse XSD Schema Code:
<element name="domainOfValidity">
    <annotation>
        <documentation>The gml:domainOfValidity property implements an association role to an EX_Extent object as encoded in ISO/TS 19139, either referencing or containing the definition of that extent.</documentation>
    </annotation>
    <complexType>
        <sequence minOccurs="0">
            <element ref="gmd:EX_Extent" />
        </sequence>
        <attributeGroup ref="gml:AssociationAttributeGroup" />
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EX_Extent gmd:EX_Extent (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
