Documentation for AIXM 5.1.1
Definition Type: Element
Name: domainSet
Namespace: http://www.opengis.net/gml/3.2
Type: gml:DomainSetType
Containing Schema: coverage.xsd
Abstract
Documentation:
The gml:domainSet property element describes the spatio-temporal region of interest, within which the coverage is defined. Its content model is given by gml:DomainSetType.
The value of the domain is thus a choice between a gml:AbstractGeometry and a gml:AbstractTimeObject.  In the instance these abstract elements will normally be substituted by a geometry complex or temporal complex, to represent spatial coverages and time-series, respectively.
The presence of the gml:AssociationAttributeGroup means that domainSet follows the usual GML property model and may use the xlink:href attribute to point to the domain, as an alternative to describing the domain inline. Ownership semantics may be provided using the gml:OwnershipAttributeGroup.

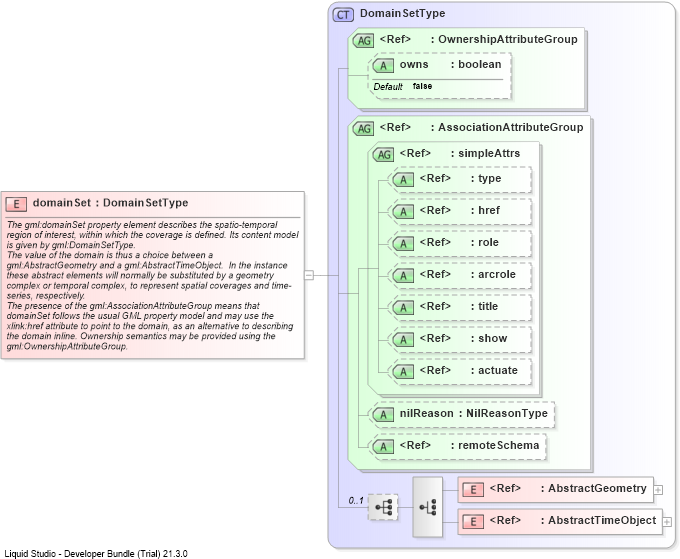

Collapse XSD Schema Diagram:
Drilldown into AbstractTimeObjectDrilldown into AbstractGeometryDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupDrilldown into ownsDrilldown into OwnershipAttributeGroupDrilldown into DomainSetTypeXSD Diagram of domainSet
Collapse XSD Schema Code:
<element name="domainSet" type="gml:DomainSetType">
    <annotation>
        <documentation>The gml:domainSet property element describes the spatio-temporal region of interest, within which the coverage is defined. Its content model is given by gml:DomainSetType.
The value of the domain is thus a choice between a gml:AbstractGeometry and a gml:AbstractTimeObject.  In the instance these abstract elements will normally be substituted by a geometry complex or temporal complex, to represent spatial coverages and time-series, respectively.
The presence of the gml:AssociationAttributeGroup means that domainSet follows the usual GML property model and may use the xlink:href attribute to point to the domain, as an alternative to describing the domain inline. Ownership semantics may be provided using the gml:OwnershipAttributeGroup.
</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AbstractGeometry gml:AbstractGeometry (1) (1)
AbstractTimeObject gml:AbstractTimeObject (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
owns gml:owns false (Optional)
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
Collapse Derivation Tree:
