Documentation for AIXM 5.1.1
Definition Type: Element
Name: DynamicFeature
Namespace: http://www.opengis.net/gml/3.2
Type: gml:DynamicFeatureType
Containing Schema: dynamicFeature.xsd
Abstract
Documentation:
States are captured by time-stamped instances of a feature. The content model extends the standard gml:AbstractFeatureType with the gml:dynamicProperties model group.
Each time-stamped instance represents a 'snapshot' of a feature. The dynamic feature classes will normally be extended to suit particular applications.  A dynamic feature bears either a time stamp or a history.

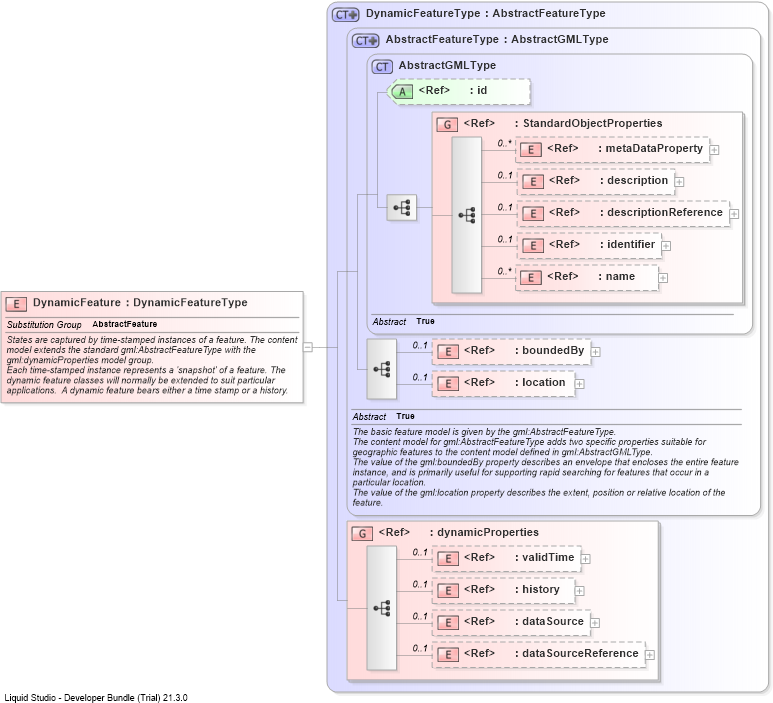

Collapse XSD Schema Diagram:
Drilldown into dataSourceReferenceDrilldown into dataSourceDrilldown into historyDrilldown into validTimeDrilldown into dynamicPropertiesDrilldown into locationDrilldown into boundedByDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into AbstractFeatureTypeDrilldown into DynamicFeatureTypeXSD Diagram of DynamicFeature
Collapse XSD Schema Code:
<element name="DynamicFeature" type="gml:DynamicFeatureType" substitutionGroup="gml:AbstractFeature">
    <annotation>
        <documentation>States are captured by time-stamped instances of a feature. The content model extends the standard gml:AbstractFeatureType with the gml:dynamicProperties model group.
Each time-stamped instance represents a 'snapshot' of a feature. The dynamic feature classes will normally be extended to suit particular applications.  A dynamic feature bears either a time stamp or a history.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
boundedBy gml:boundedBy 0 (1)
location gml:location 0 (1)
validTime gml:validTime 0 (1)
history gml:history 0 (1)
dataSource gml:dataSource 0 (1)
dataSourceReference gml:dataSourceReference 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractFeature
