Documentation for AIXM 5.1.1
Definition Type: Element
Name: ElevatedCurve
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:ElevatedCurveType
Containing Schema: AIXM_Features.xsd
Abstract

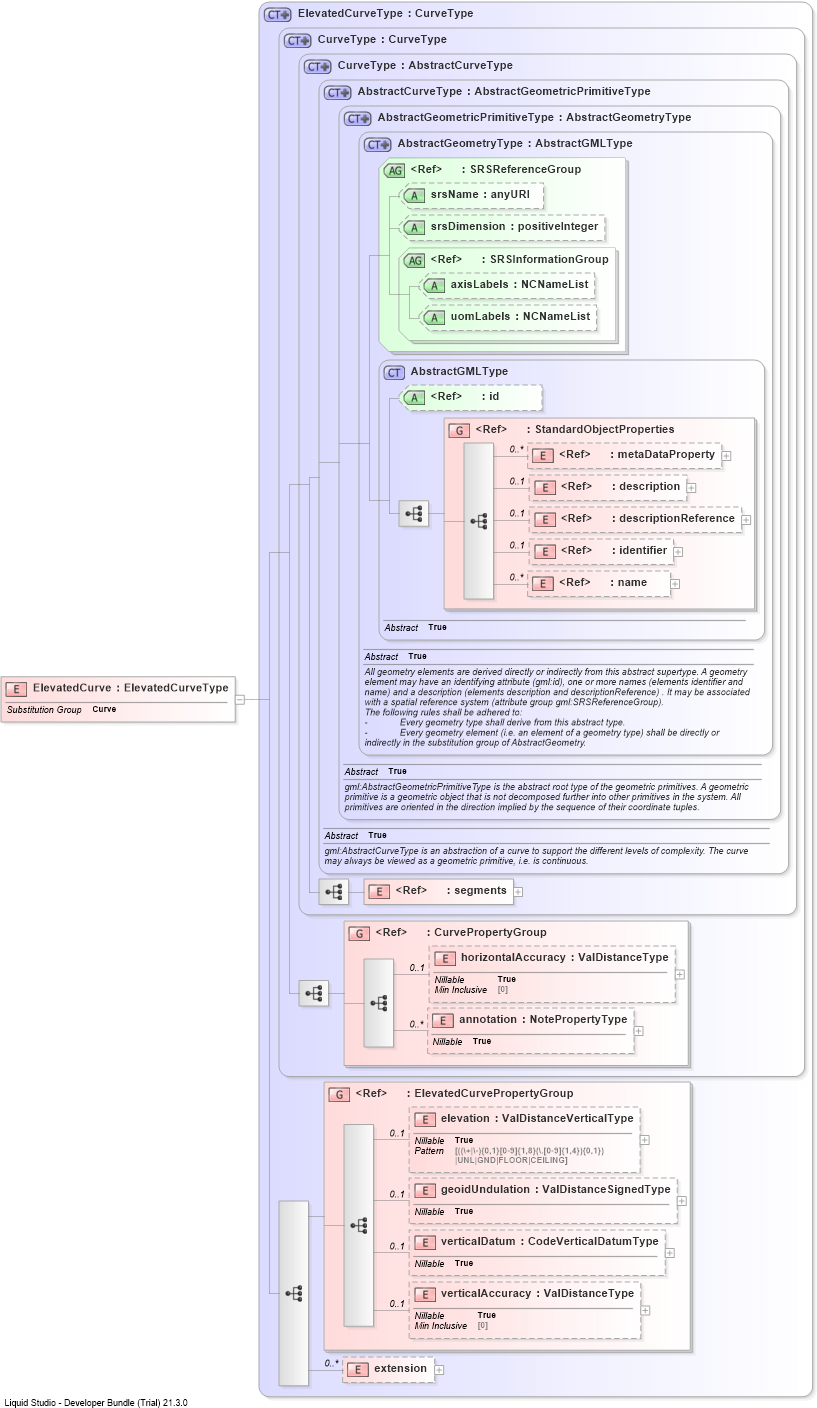

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into verticalAccuracyDrilldown into verticalDatumDrilldown into geoidUndulationDrilldown into elevationDrilldown into ElevatedCurvePropertyGroupDrilldown into annotationDrilldown into horizontalAccuracyDrilldown into CurvePropertyGroupDrilldown into segmentsDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into uomLabelsDrilldown into axisLabelsDrilldown into SRSInformationGroupDrilldown into srsDimensionDrilldown into srsNameDrilldown into SRSReferenceGroupDrilldown into AbstractGeometryTypeDrilldown into AbstractGeometricPrimitiveTypeDrilldown into AbstractCurveTypeDrilldown into CurveTypeDrilldown into CurveTypeDrilldown into ElevatedCurveTypeXSD Diagram of ElevatedCurve
Collapse XSD Schema Code:
<element name="ElevatedCurve" type="aixm:ElevatedCurveType" substitutionGroup="aixm:Curve" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
segments gml:segments (1) (1)
horizontalAccuracy aixm:horizontalAccuracy 0 (1)
annotation aixm:annotation 0 unbounded
elevation aixm:elevation 0 (1)
geoidUndulation aixm:geoidUndulation 0 (1)
verticalDatum aixm:verticalDatum 0 (1)
verticalAccuracy aixm:verticalAccuracy 0 (1)
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:CurvePropertyGroup (1) (1)
<xs:group> aixm:ElevatedCurvePropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
Collapse Derivation Tree:
Collapse References:
aixm:Curve
