Documentation for AIXM 5.1.1
Definition Type: Group
Name: ElevatedSurfacePropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

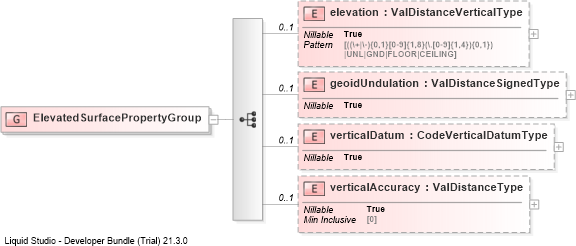

Collapse XSD Schema Diagram:
Drilldown into verticalAccuracyDrilldown into verticalDatumDrilldown into geoidUndulationDrilldown into elevationXSD Diagram of ElevatedSurfacePropertyGroup
Collapse XSD Schema Code:
<group name="ElevatedSurfacePropertyGroup">
    <sequence>
        <element name="elevation" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="geoidUndulation" type="aixm:ValDistanceSignedType" nillable="true" minOccurs="0" />
        <element name="verticalDatum" type="aixm:CodeVerticalDatumType" nillable="true" minOccurs="0" />
        <element name="verticalAccuracy" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
elevation aixm:elevation 0 (1)
geoidUndulation aixm:geoidUndulation 0 (1)
verticalDatum aixm:verticalDatum 0 (1)
verticalAccuracy aixm:verticalAccuracy 0 (1)
