Documentation for AIXM 5.1.1
Definition Type: Element
Name: Ellipsoid
Namespace: http://www.opengis.net/gml/3.2
Type: gml:EllipsoidType
Containing Schema: datums.xsd
Abstract
Documentation:
A gml:Ellipsoid is a geometric figure that may be used to describe the approximate shape of the earth. In mathematical terms, it is a surface formed by the rotation of an ellipse about its minor axis.

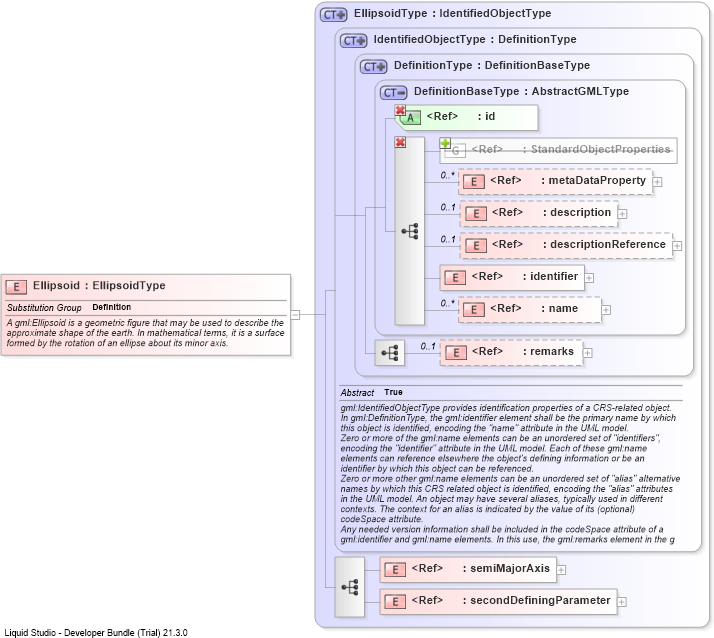

Collapse XSD Schema Diagram:
Drilldown into secondDefiningParameterDrilldown into semiMajorAxisDrilldown into remarksDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into DefinitionBaseTypeDrilldown into DefinitionTypeDrilldown into IdentifiedObjectTypeDrilldown into EllipsoidTypeXSD Diagram of Ellipsoid
Collapse XSD Schema Code:
<element name="Ellipsoid" type="gml:EllipsoidType" substitutionGroup="gml:Definition">
    <annotation>
        <documentation>A gml:Ellipsoid is a geometric figure that may be used to describe the approximate shape of the earth. In mathematical terms, it is a surface formed by the rotation of an ellipse about its minor axis.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
semiMajorAxis gml:semiMajorAxis (1) (1)
secondDefiningParameter gml:secondDefiningParameter (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:Definition
