Documentation for AIXM 5.1.1
Definition Type: Element
Name: EnvelopeWithTimePeriod
Namespace: http://www.opengis.net/gml/3.2
Type: gml:EnvelopeWithTimePeriodType
Containing Schema: feature.xsd
Abstract
Documentation:
gml:EnvelopeWithTimePeriod is provided for envelopes that include a temporal extent. It adds two time position properties, gml:beginPosition and gml:endPosition, which describe the extent of a time-envelope.
Since gml:EnvelopeWithTimePeriod is assigned to the substitution group headed by gml:Envelope, it may be used whenever gml:Envelope is valid.

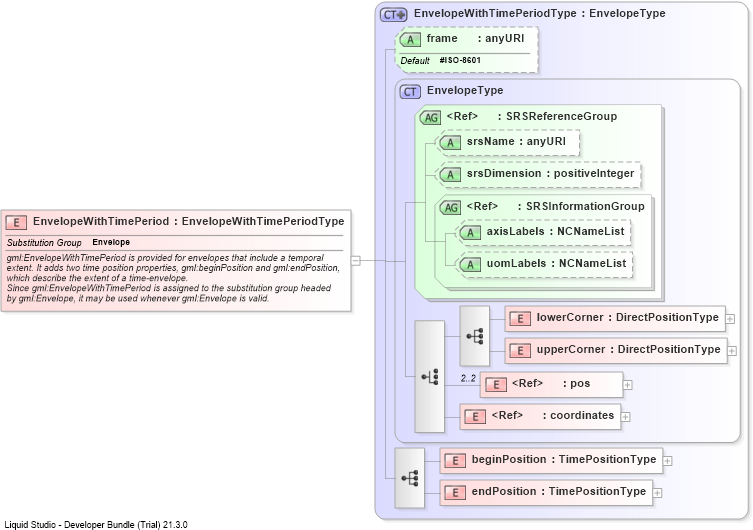

Collapse XSD Schema Diagram:
Drilldown into endPositionDrilldown into beginPositionDrilldown into coordinatesDrilldown into posDrilldown into upperCornerDrilldown into lowerCornerDrilldown into uomLabelsDrilldown into axisLabelsDrilldown into SRSInformationGroupDrilldown into srsDimensionDrilldown into srsNameDrilldown into SRSReferenceGroupDrilldown into EnvelopeTypeDrilldown into frameDrilldown into EnvelopeWithTimePeriodTypeXSD Diagram of EnvelopeWithTimePeriod
Collapse XSD Schema Code:
<element name="EnvelopeWithTimePeriod" type="gml:EnvelopeWithTimePeriodType" substitutionGroup="gml:Envelope">
    <annotation>
        <documentation>gml:EnvelopeWithTimePeriod is provided for envelopes that include a temporal extent. It adds two time position properties, gml:beginPosition and gml:endPosition, which describe the extent of a time-envelope.
Since gml:EnvelopeWithTimePeriod is assigned to the substitution group headed by gml:Envelope, it may be used whenever gml:Envelope is valid.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
lowerCorner gml:lowerCorner (1) (1)
upperCorner gml:upperCorner (1) (1)
pos gml:pos 2 2
coordinates gml:coordinates (1) (1)
beginPosition gml:beginPosition (1) (1)
endPosition gml:endPosition (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
frame gml:frame #ISO-8601 (Optional)
Collapse Derivation Tree:
Collapse References:
gml:Envelope
