Documentation for AIXM 5.1.1
Definition Type: Group
Name: EquipmentUnavailableAdjustmentColumnPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

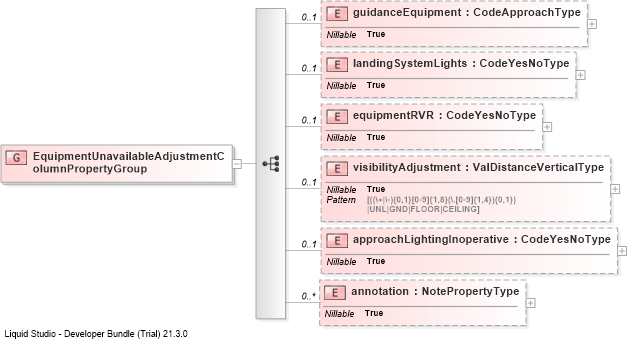

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into approachLightingInoperativeDrilldown into visibilityAdjustmentDrilldown into equipmentRVRDrilldown into landingSystemLightsDrilldown into guidanceEquipmentXSD Diagram of EquipmentUnavailableAdjustmentColumnPropertyGroup
Collapse XSD Schema Code:
<group name="EquipmentUnavailableAdjustmentColumnPropertyGroup">
    <sequence>
        <element name="guidanceEquipment" type="aixm:CodeApproachType" nillable="true" minOccurs="0" />
        <element name="landingSystemLights" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="equipmentRVR" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="visibilityAdjustment" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="approachLightingInoperative" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
guidanceEquipment aixm:guidanceEquipment 0 (1)
landingSystemLights aixm:landingSystemLights 0 (1)
equipmentRVR aixm:equipmentRVR 0 (1)
visibilityAdjustment aixm:visibilityAdjustment 0 (1)
approachLightingInoperative aixm:approachLightingInoperative 0 (1)
annotation aixm:annotation 0 unbounded
