Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: EX_BoundingPolygon_Type
Namespace: http://www.isotc211.org/2005/gmd
Type: gmd:AbstractEX_GeographicExtent_Type
Containing Schema: extent.xsd
Abstract
Documentation:
Boundary enclosing the dataset expressed as the closed set of (x,y) coordinates of the polygon (last point replicates first point)

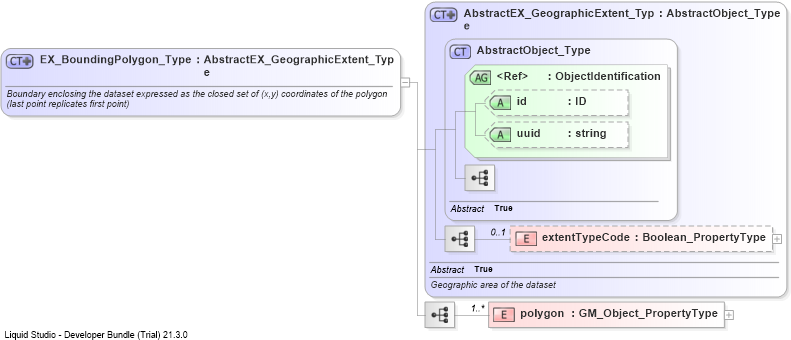

Collapse XSD Schema Diagram:
Drilldown into polygonDrilldown into extentTypeCodeDrilldown into uuidDrilldown into idDrilldown into ObjectIdentificationDrilldown into AbstractObject_TypeDrilldown into AbstractEX_GeographicExtent_TypeXSD Diagram of EX_BoundingPolygon_Type
Collapse XSD Schema Code:
<xs:complexType name="EX_BoundingPolygon_Type">
    <xs:annotation>
        <xs:documentation>Boundary enclosing the dataset expressed as the closed set of (x,y) coordinates of the polygon (last point replicates first point)</xs:documentation>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="gmd:AbstractEX_GeographicExtent_Type">
            <xs:sequence>
                <xs:element name="polygon" type="gss:GM_Object_PropertyType" maxOccurs="unbounded" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
extentTypeCode gmd:extentTypeCode 0 (1)
polygon gmd:polygon (1) unbounded
Collapse Child Attributes:
Name Type Default Value Use
id gco:id (Optional)
uuid gco:uuid (Optional)
Collapse Derivation Tree:
Collapse References:
gmd:EX_BoundingPolygon
