Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: EX_GeographicBoundingBox_Type
Namespace: http://www.isotc211.org/2005/gmd
Type: gmd:AbstractEX_GeographicExtent_Type
Containing Schema: extent.xsd
Abstract
Documentation:
Geographic area of the entire dataset referenced to WGS 84

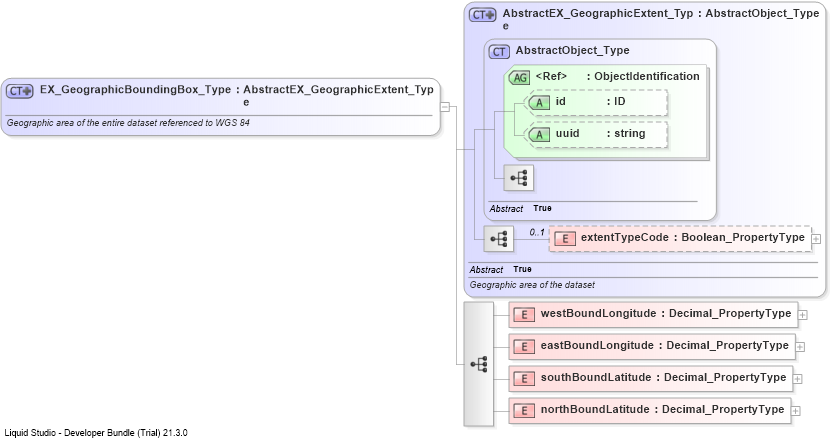

Collapse XSD Schema Diagram:
Drilldown into northBoundLatitudeDrilldown into southBoundLatitudeDrilldown into eastBoundLongitudeDrilldown into westBoundLongitudeDrilldown into extentTypeCodeDrilldown into uuidDrilldown into idDrilldown into ObjectIdentificationDrilldown into AbstractObject_TypeDrilldown into AbstractEX_GeographicExtent_TypeXSD Diagram of EX_GeographicBoundingBox_Type
Collapse XSD Schema Code:
<xs:complexType name="EX_GeographicBoundingBox_Type">
    <xs:annotation>
        <xs:documentation>Geographic area of the entire dataset referenced to WGS 84</xs:documentation>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="gmd:AbstractEX_GeographicExtent_Type">
            <xs:sequence>
                <xs:element name="westBoundLongitude" type="gco:Decimal_PropertyType" />
                <xs:element name="eastBoundLongitude" type="gco:Decimal_PropertyType" />
                <xs:element name="southBoundLatitude" type="gco:Decimal_PropertyType" />
                <xs:element name="northBoundLatitude" type="gco:Decimal_PropertyType" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
extentTypeCode gmd:extentTypeCode 0 (1)
westBoundLongitude gmd:westBoundLongitude (1) (1)
eastBoundLongitude gmd:eastBoundLongitude (1) (1)
southBoundLatitude gmd:southBoundLatitude (1) (1)
northBoundLatitude gmd:northBoundLatitude (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gco:id (Optional)
uuid gco:uuid (Optional)
Collapse Derivation Tree:
Collapse References:
gmd:EX_GeographicBoundingBox
