Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: extended
Namespace: http://www.w3.org/1999/xlink
Containing Schema: xlink.xsd
Abstract
Documentation:
Intended for use as the type of user-declared elements to make them
extended links.
Note that the elements referenced in the content model are all abstract.
The intention is that by simply declaring elements with these as their
substitutionGroup, all the right things will happen.

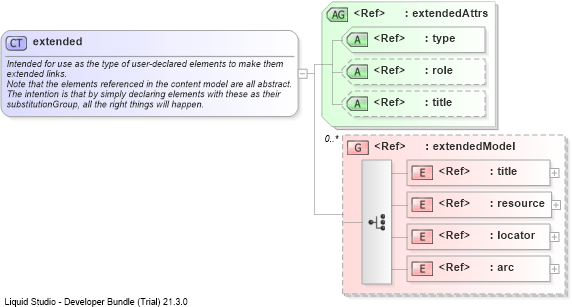

Collapse XSD Schema Diagram:
Drilldown into arcDrilldown into locatorDrilldown into resourceDrilldown into titleDrilldown into extendedModelDrilldown into titleDrilldown into roleDrilldown into typeDrilldown into extendedAttrsXSD Diagram of extended
Collapse XSD Schema Code:
<xs:complexType name="extended">
    <xs:annotation>
        <xs:documentation>
    Intended for use as the type of user-declared elements to make them
    extended links.
    Note that the elements referenced in the content model are all abstract.
    The intention is that by simply declaring elements with these as their
    substitutionGroup, all the right things will happen.
   </xs:documentation>
    </xs:annotation>
    <xs:group ref="xlink:extendedModel" minOccurs="0" maxOccurs="unbounded" />
    <xs:attributeGroup ref="xlink:extendedAttrs" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
title xlink:title (1) (1)
resource xlink:resource (1) (1)
locator xlink:locator (1) (1)
arc xlink:arc (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type Required
role xlink:role (Optional)
title xlink:title (Optional)
