Documentation for AIXM 5.1.1
Definition Type: Element
Name: extension
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

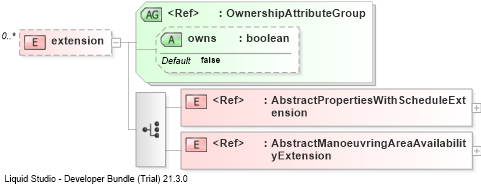

Collapse XSD Schema Diagram:
Drilldown into AbstractManoeuvringAreaAvailabilityExtensionDrilldown into AbstractPropertiesWithScheduleExtensionDrilldown into ownsDrilldown into OwnershipAttributeGroupXSD Diagram of extension
Collapse XSD Schema Code:
<element name="extension" minOccurs="0" maxOccurs="unbounded">
    <complexType>
        <choice>
            <element ref="aixm:AbstractPropertiesWithScheduleExtension" />
            <element ref="aixm:AbstractManoeuvringAreaAvailabilityExtension" />
        </choice>
        <attributeGroup ref="gml:OwnershipAttributeGroup" />
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AbstractPropertiesWithScheduleExtension aixm:AbstractPropertiesWithScheduleExtension (1) (1)
AbstractManoeuvringAreaAvailabilityExtension aixm:AbstractManoeuvringAreaAvailabilityExtension (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
owns gml:owns false (Optional)
