Documentation for AIXM 5.1.1
Definition Type: Group
Name: FASDataBlockPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

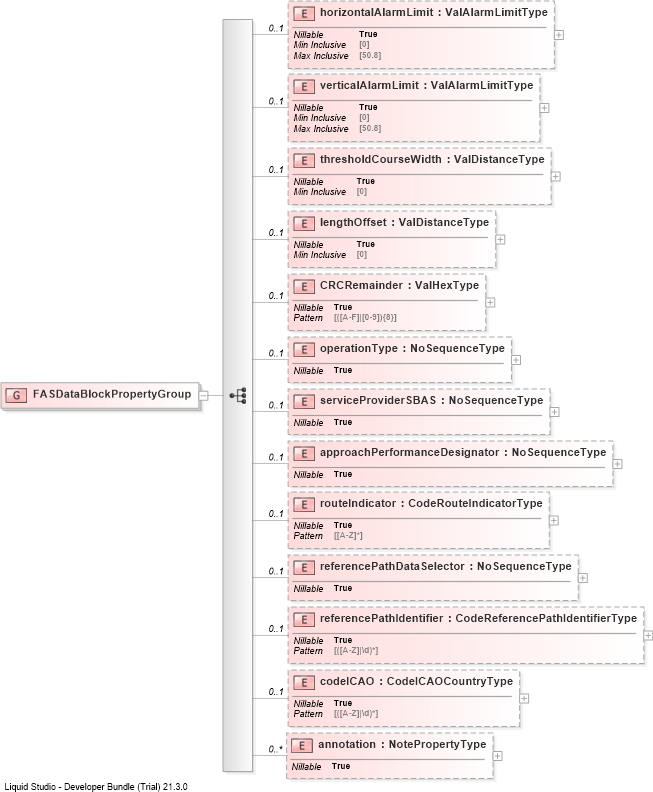

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into codeICAODrilldown into referencePathIdentifierDrilldown into referencePathDataSelectorDrilldown into routeIndicatorDrilldown into approachPerformanceDesignatorDrilldown into serviceProviderSBASDrilldown into operationTypeDrilldown into CRCRemainderDrilldown into lengthOffsetDrilldown into thresholdCourseWidthDrilldown into verticalAlarmLimitDrilldown into horizontalAlarmLimitXSD Diagram of FASDataBlockPropertyGroup
Collapse XSD Schema Code:
<group name="FASDataBlockPropertyGroup">
    <sequence>
        <element name="horizontalAlarmLimit" type="aixm:ValAlarmLimitType" nillable="true" minOccurs="0" />
        <element name="verticalAlarmLimit" type="aixm:ValAlarmLimitType" nillable="true" minOccurs="0" />
        <element name="thresholdCourseWidth" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="lengthOffset" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="CRCRemainder" type="aixm:ValHexType" nillable="true" minOccurs="0" />
        <element name="operationType" type="aixm:NoSequenceType" nillable="true" minOccurs="0" />
        <element name="serviceProviderSBAS" type="aixm:NoSequenceType" nillable="true" minOccurs="0" />
        <element name="approachPerformanceDesignator" type="aixm:NoSequenceType" nillable="true" minOccurs="0" />
        <element name="routeIndicator" type="aixm:CodeRouteIndicatorType" nillable="true" minOccurs="0" />
        <element name="referencePathDataSelector" type="aixm:NoSequenceType" nillable="true" minOccurs="0" />
        <element name="referencePathIdentifier" type="aixm:CodeReferencePathIdentifierType" nillable="true" minOccurs="0" />
        <element name="codeICAO" type="aixm:CodeICAOCountryType" nillable="true" minOccurs="0" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
horizontalAlarmLimit aixm:horizontalAlarmLimit 0 (1)
verticalAlarmLimit aixm:verticalAlarmLimit 0 (1)
thresholdCourseWidth aixm:thresholdCourseWidth 0 (1)
lengthOffset aixm:lengthOffset 0 (1)
CRCRemainder aixm:CRCRemainder 0 (1)
operationType aixm:operationType 0 (1)
serviceProviderSBAS aixm:serviceProviderSBAS 0 (1)
approachPerformanceDesignator aixm:approachPerformanceDesignator 0 (1)
routeIndicator aixm:routeIndicator 0 (1)
referencePathDataSelector aixm:referencePathDataSelector 0 (1)
referencePathIdentifier aixm:referencePathIdentifier 0 (1)
codeICAO aixm:codeICAO 0 (1)
annotation aixm:annotation 0 unbounded
