Documentation for AIXM 5.1.1
Definition Type: Group
Name: FinalLegPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd
Collapse XSD Schema Diagram:

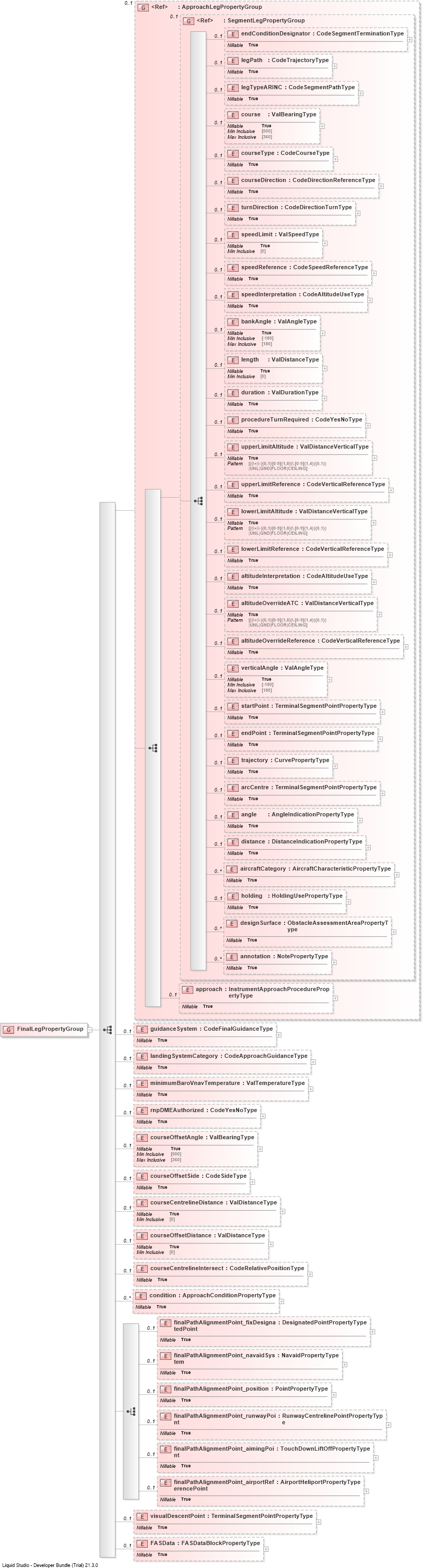

Drilldown into FASDataDrilldown into visualDescentPointDrilldown into finalPathAlignmentPoint_airportReferencePointDrilldown into finalPathAlignmentPoint_aimingPointDrilldown into finalPathAlignmentPoint_runwayPointDrilldown into finalPathAlignmentPoint_positionDrilldown into finalPathAlignmentPoint_navaidSystemDrilldown into finalPathAlignmentPoint_fixDesignatedPointDrilldown into conditionDrilldown into courseCentrelineIntersectDrilldown into courseOffsetDistanceDrilldown into courseCentrelineDistanceDrilldown into courseOffsetSideDrilldown into courseOffsetAngleDrilldown into rnpDMEAuthorizedDrilldown into minimumBaroVnavTemperatureDrilldown into landingSystemCategoryDrilldown into guidanceSystemDrilldown into approachDrilldown into annotationDrilldown into designSurfaceDrilldown into holdingDrilldown into aircraftCategoryDrilldown into distanceDrilldown into angleDrilldown into arcCentreDrilldown into trajectoryDrilldown into endPointDrilldown into startPointDrilldown into verticalAngleDrilldown into altitudeOverrideReferenceDrilldown into altitudeOverrideATCDrilldown into altitudeInterpretationDrilldown into lowerLimitReferenceDrilldown into lowerLimitAltitudeDrilldown into upperLimitReferenceDrilldown into upperLimitAltitudeDrilldown into procedureTurnRequiredDrilldown into durationDrilldown into lengthDrilldown into bankAngleDrilldown into speedInterpretationDrilldown into speedReferenceDrilldown into speedLimitDrilldown into turnDirectionDrilldown into courseDirectionDrilldown into courseTypeDrilldown into courseDrilldown into legTypeARINCDrilldown into legPathDrilldown into endConditionDesignatorDrilldown into SegmentLegPropertyGroupDrilldown into ApproachLegPropertyGroupXSD Diagram of FinalLegPropertyGroup
Collapse XSD Schema Code:
<group name="FinalLegPropertyGroup">
    <sequence>
        <group ref="aixm:ApproachLegPropertyGroup" minOccurs="0" />
        <element name="guidanceSystem" type="aixm:CodeFinalGuidanceType" nillable="true" minOccurs="0" />
        <element name="landingSystemCategory" type="aixm:CodeApproachGuidanceType" nillable="true" minOccurs="0" />
        <element name="minimumBaroVnavTemperature" type="aixm:ValTemperatureType" nillable="true" minOccurs="0" />
        <element name="rnpDMEAuthorized" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="courseOffsetAngle" type="aixm:ValBearingType" nillable="true" minOccurs="0" />
        <element name="courseOffsetSide" type="aixm:CodeSideType" nillable="true" minOccurs="0" />
        <element name="courseCentrelineDistance" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="courseOffsetDistance" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="courseCentrelineIntersect" type="aixm:CodeRelativePositionType" nillable="true" minOccurs="0" />
        <element name="condition" type="aixm:ApproachConditionPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <choice>
            <element name="finalPathAlignmentPoint_fixDesignatedPoint" type="aixm:DesignatedPointPropertyType" nillable="true" minOccurs="0" />
            <element name="finalPathAlignmentPoint_navaidSystem" type="aixm:NavaidPropertyType" nillable="true" minOccurs="0" />
            <element name="finalPathAlignmentPoint_position" type="aixm:PointPropertyType" nillable="true" minOccurs="0" />
            <element name="finalPathAlignmentPoint_runwayPoint" type="aixm:RunwayCentrelinePointPropertyType" nillable="true" minOccurs="0" />
            <element name="finalPathAlignmentPoint_aimingPoint" type="aixm:TouchDownLiftOffPropertyType" nillable="true" minOccurs="0" />
            <element name="finalPathAlignmentPoint_airportReferencePoint" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" />
        </choice>
        <element name="visualDescentPoint" type="aixm:TerminalSegmentPointPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="FASData" type="aixm:FASDataBlockPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
endConditionDesignator aixm:endConditionDesignator 0 (1)
legPath aixm:legPath 0 (1)
legTypeARINC aixm:legTypeARINC 0 (1)
course aixm:course 0 (1)
courseType aixm:courseType 0 (1)
courseDirection aixm:courseDirection 0 (1)
turnDirection aixm:turnDirection 0 (1)
speedLimit aixm:speedLimit 0 (1)
speedReference aixm:speedReference 0 (1)
speedInterpretation aixm:speedInterpretation 0 (1)
bankAngle aixm:bankAngle 0 (1)
length aixm:length 0 (1)
duration aixm:duration 0 (1)
procedureTurnRequired aixm:procedureTurnRequired 0 (1)
upperLimitAltitude aixm:upperLimitAltitude 0 (1)
upperLimitReference aixm:upperLimitReference 0 (1)
lowerLimitAltitude aixm:lowerLimitAltitude 0 (1)
lowerLimitReference aixm:lowerLimitReference 0 (1)
altitudeInterpretation aixm:altitudeInterpretation 0 (1)
altitudeOverrideATC aixm:altitudeOverrideATC 0 (1)
altitudeOverrideReference aixm:altitudeOverrideReference 0 (1)
verticalAngle aixm:verticalAngle 0 (1)
startPoint aixm:startPoint 0 1
endPoint aixm:endPoint 0 1
trajectory aixm:trajectory 0 1
arcCentre aixm:arcCentre 0 1
angle aixm:angle 0 1
distance aixm:distance 0 1
aircraftCategory aixm:aircraftCategory 0 unbounded
holding aixm:holding 0 1
designSurface aixm:designSurface 0 unbounded
annotation aixm:annotation 0 unbounded
approach aixm:approach 0 1
guidanceSystem aixm:guidanceSystem 0 (1)
landingSystemCategory aixm:landingSystemCategory 0 (1)
minimumBaroVnavTemperature aixm:minimumBaroVnavTemperature 0 (1)
rnpDMEAuthorized aixm:rnpDMEAuthorized 0 (1)
courseOffsetAngle aixm:courseOffsetAngle 0 (1)
courseOffsetSide aixm:courseOffsetSide 0 (1)
courseCentrelineDistance aixm:courseCentrelineDistance 0 (1)
courseOffsetDistance aixm:courseOffsetDistance 0 (1)
courseCentrelineIntersect aixm:courseCentrelineIntersect 0 (1)
condition aixm:condition 0 unbounded
finalPathAlignmentPoint_fixDesignatedPoint aixm:finalPathAlignmentPoint_fixDesignatedPoint 0 (1)
finalPathAlignmentPoint_navaidSystem aixm:finalPathAlignmentPoint_navaidSystem 0 (1)
finalPathAlignmentPoint_position aixm:finalPathAlignmentPoint_position 0 (1)
finalPathAlignmentPoint_runwayPoint aixm:finalPathAlignmentPoint_runwayPoint 0 (1)
finalPathAlignmentPoint_aimingPoint aixm:finalPathAlignmentPoint_aimingPoint 0 (1)
finalPathAlignmentPoint_airportReferencePoint aixm:finalPathAlignmentPoint_airportReferencePoint 0 (1)
visualDescentPoint aixm:visualDescentPoint 0 1
FASData aixm:FASData 0 1
<xs:group> aixm:ApproachLegPropertyGroup 0 (1)
<xs:group> aixm:SegmentLegPropertyGroup 0 (1)
