Documentation for AIXM 5.1.1
Definition Type: Group
Name: FinalProfilePropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

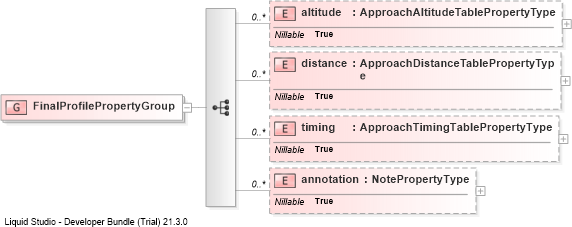

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into timingDrilldown into distanceDrilldown into altitudeXSD Diagram of FinalProfilePropertyGroup
Collapse XSD Schema Code:
<group name="FinalProfilePropertyGroup">
    <sequence>
        <element name="altitude" type="aixm:ApproachAltitudeTablePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="distance" type="aixm:ApproachDistanceTablePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="timing" type="aixm:ApproachTimingTablePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
altitude aixm:altitude 0 unbounded
distance aixm:distance 0 unbounded
timing aixm:timing 0 unbounded
annotation aixm:annotation 0 unbounded
