Documentation for AIXM 5.1.1
Definition Type: Group
Name: FlightCharacteristicPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

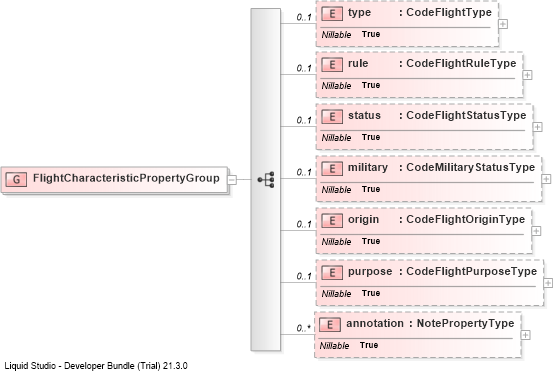

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into purposeDrilldown into originDrilldown into militaryDrilldown into statusDrilldown into ruleDrilldown into typeXSD Diagram of FlightCharacteristicPropertyGroup
Collapse XSD Schema Code:
<group name="FlightCharacteristicPropertyGroup">
    <sequence>
        <element name="type" type="aixm:CodeFlightType" nillable="true" minOccurs="0" />
        <element name="rule" type="aixm:CodeFlightRuleType" nillable="true" minOccurs="0" />
        <element name="status" type="aixm:CodeFlightStatusType" nillable="true" minOccurs="0" />
        <element name="military" type="aixm:CodeMilitaryStatusType" nillable="true" minOccurs="0" />
        <element name="origin" type="aixm:CodeFlightOriginType" nillable="true" minOccurs="0" />
        <element name="purpose" type="aixm:CodeFlightPurposeType" nillable="true" minOccurs="0" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
type aixm:type 0 (1)
rule aixm:rule 0 (1)
status aixm:status 0 (1)
military aixm:military 0 (1)
origin aixm:origin 0 (1)
purpose aixm:purpose 0 (1)
annotation aixm:annotation 0 unbounded
