Documentation for AIXM 5.1.1
Definition Type: Group
Name: FlightConditionElementPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

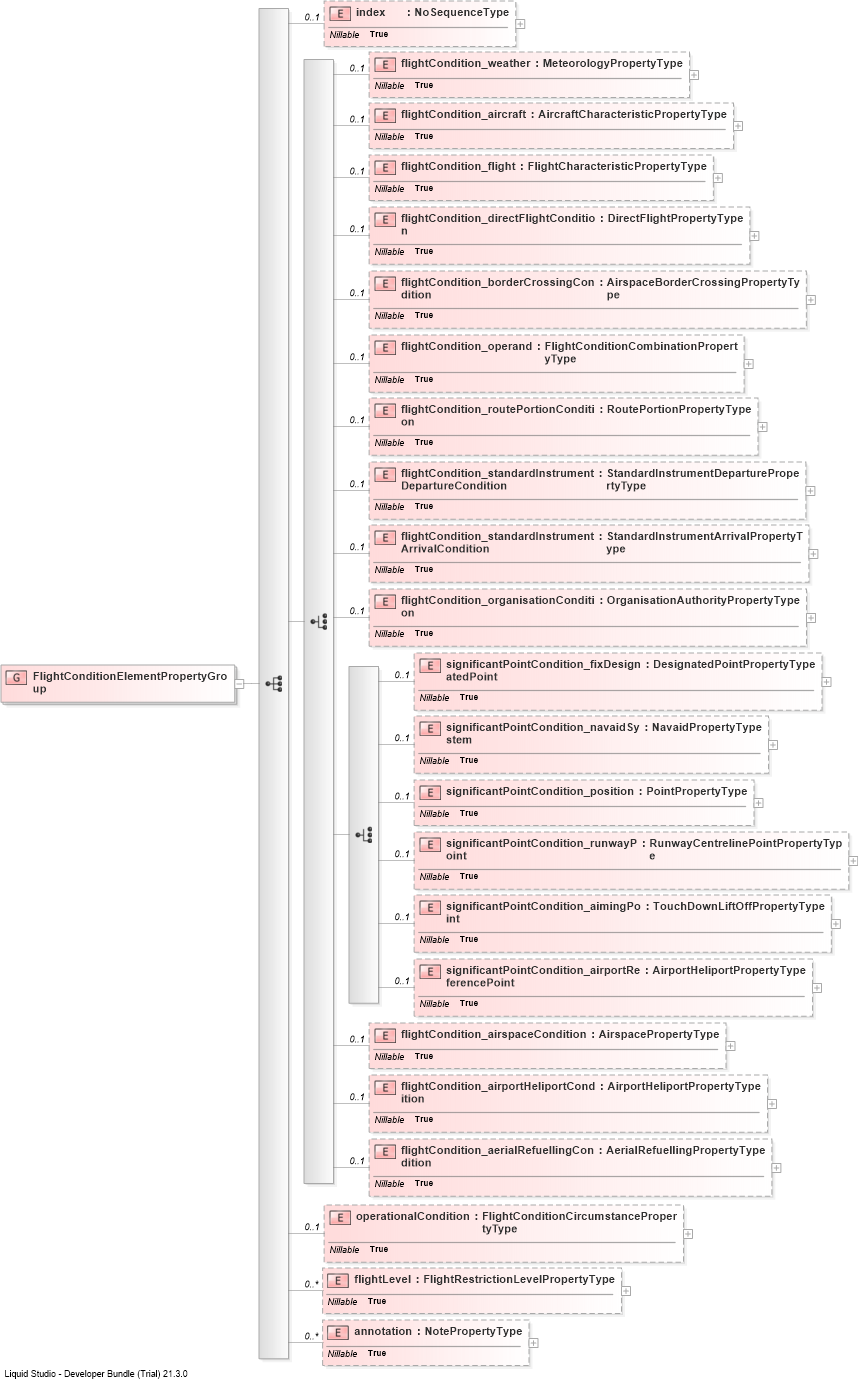

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into flightLevelDrilldown into operationalConditionDrilldown into flightCondition_aerialRefuellingConditionDrilldown into flightCondition_airportHeliportConditionDrilldown into flightCondition_airspaceConditionDrilldown into significantPointCondition_airportReferencePointDrilldown into significantPointCondition_aimingPointDrilldown into significantPointCondition_runwayPointDrilldown into significantPointCondition_positionDrilldown into significantPointCondition_navaidSystemDrilldown into significantPointCondition_fixDesignatedPointDrilldown into flightCondition_organisationConditionDrilldown into flightCondition_standardInstrumentArrivalConditionDrilldown into flightCondition_standardInstrumentDepartureConditionDrilldown into flightCondition_routePortionConditionDrilldown into flightCondition_operandDrilldown into flightCondition_borderCrossingConditionDrilldown into flightCondition_directFlightConditionDrilldown into flightCondition_flightDrilldown into flightCondition_aircraftDrilldown into flightCondition_weatherDrilldown into indexXSD Diagram of FlightConditionElementPropertyGroup
Collapse XSD Schema Code:
<group name="FlightConditionElementPropertyGroup">
    <sequence>
        <element name="index" type="aixm:NoSequenceType" nillable="true" minOccurs="0" />
        <choice>
            <element name="flightCondition_weather" type="aixm:MeteorologyPropertyType" nillable="true" minOccurs="0" />
            <element name="flightCondition_aircraft" type="aixm:AircraftCharacteristicPropertyType" nillable="true" minOccurs="0" />
            <element name="flightCondition_flight" type="aixm:FlightCharacteristicPropertyType" nillable="true" minOccurs="0" />
            <element name="flightCondition_directFlightCondition" type="aixm:DirectFlightPropertyType" nillable="true" minOccurs="0" />
            <element name="flightCondition_borderCrossingCondition" type="aixm:AirspaceBorderCrossingPropertyType" nillable="true" minOccurs="0" />
            <element name="flightCondition_operand" type="aixm:FlightConditionCombinationPropertyType" nillable="true" minOccurs="0" />
            <element name="flightCondition_routePortionCondition" type="aixm:RoutePortionPropertyType" nillable="true" minOccurs="0" />
            <element name="flightCondition_standardInstrumentDepartureCondition" type="aixm:StandardInstrumentDeparturePropertyType" nillable="true" minOccurs="0" />
            <element name="flightCondition_standardInstrumentArrivalCondition" type="aixm:StandardInstrumentArrivalPropertyType" nillable="true" minOccurs="0" />
            <element name="flightCondition_organisationCondition" type="aixm:OrganisationAuthorityPropertyType" nillable="true" minOccurs="0" />
            <choice>
                <element name="significantPointCondition_fixDesignatedPoint" type="aixm:DesignatedPointPropertyType" nillable="true" minOccurs="0" />
                <element name="significantPointCondition_navaidSystem" type="aixm:NavaidPropertyType" nillable="true" minOccurs="0" />
                <element name="significantPointCondition_position" type="aixm:PointPropertyType" nillable="true" minOccurs="0" />
                <element name="significantPointCondition_runwayPoint" type="aixm:RunwayCentrelinePointPropertyType" nillable="true" minOccurs="0" />
                <element name="significantPointCondition_aimingPoint" type="aixm:TouchDownLiftOffPropertyType" nillable="true" minOccurs="0" />
                <element name="significantPointCondition_airportReferencePoint" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" />
            </choice>
            <element name="flightCondition_airspaceCondition" type="aixm:AirspacePropertyType" nillable="true" minOccurs="0" />
            <element name="flightCondition_airportHeliportCondition" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" />
            <element name="flightCondition_aerialRefuellingCondition" type="aixm:AerialRefuellingPropertyType" nillable="true" minOccurs="0" />
        </choice>
        <element name="operationalCondition" type="aixm:FlightConditionCircumstancePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="flightLevel" type="aixm:FlightRestrictionLevelPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
index aixm:index 0 (1)
flightCondition_weather aixm:flightCondition_weather 0 (1)
flightCondition_aircraft aixm:flightCondition_aircraft 0 (1)
flightCondition_flight aixm:flightCondition_flight 0 (1)
flightCondition_directFlightCondition aixm:flightCondition_directFlightCondition 0 (1)
flightCondition_borderCrossingCondition aixm:flightCondition_borderCrossingCondition 0 (1)
flightCondition_operand aixm:flightCondition_operand 0 (1)
flightCondition_routePortionCondition aixm:flightCondition_routePortionCondition 0 (1)
flightCondition_standardInstrumentDepartureCondition aixm:flightCondition_standardInstrumentDepartureCondition 0 (1)
flightCondition_standardInstrumentArrivalCondition aixm:flightCondition_standardInstrumentArrivalCondition 0 (1)
flightCondition_organisationCondition aixm:flightCondition_organisationCondition 0 (1)
significantPointCondition_fixDesignatedPoint aixm:significantPointCondition_fixDesignatedPoint 0 (1)
significantPointCondition_navaidSystem aixm:significantPointCondition_navaidSystem 0 (1)
significantPointCondition_position aixm:significantPointCondition_position 0 (1)
significantPointCondition_runwayPoint aixm:significantPointCondition_runwayPoint 0 (1)
significantPointCondition_aimingPoint aixm:significantPointCondition_aimingPoint 0 (1)
significantPointCondition_airportReferencePoint aixm:significantPointCondition_airportReferencePoint 0 (1)
flightCondition_airspaceCondition aixm:flightCondition_airspaceCondition 0 (1)
flightCondition_airportHeliportCondition aixm:flightCondition_airportHeliportCondition 0 (1)
flightCondition_aerialRefuellingCondition aixm:flightCondition_aerialRefuellingCondition 0 (1)
operationalCondition aixm:operationalCondition 0 1
flightLevel aixm:flightLevel 0 unbounded
annotation aixm:annotation 0 unbounded
