Documentation for AIXM 5.1.1
Definition Type: Group
Name: FlightRestrictionLevelPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

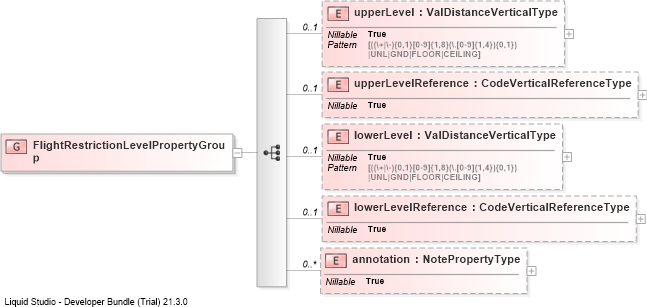

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into lowerLevelReferenceDrilldown into lowerLevelDrilldown into upperLevelReferenceDrilldown into upperLevelXSD Diagram of FlightRestrictionLevelPropertyGroup
Collapse XSD Schema Code:
<group name="FlightRestrictionLevelPropertyGroup">
    <sequence>
        <element name="upperLevel" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="upperLevelReference" type="aixm:CodeVerticalReferenceType" nillable="true" minOccurs="0" />
        <element name="lowerLevel" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="lowerLevelReference" type="aixm:CodeVerticalReferenceType" nillable="true" minOccurs="0" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
upperLevel aixm:upperLevel 0 (1)
upperLevelReference aixm:upperLevelReference 0 (1)
lowerLevel aixm:lowerLevel 0 (1)
lowerLevelReference aixm:lowerLevelReference 0 (1)
annotation aixm:annotation 0 unbounded
