Documentation for AIXM 5.1.1
Definition Type: Group
Name: FlightRestrictionPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

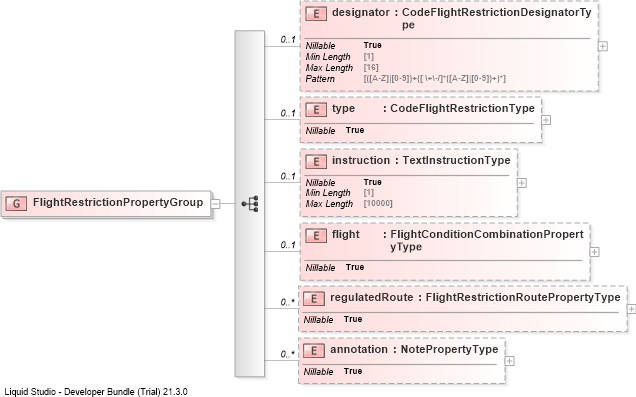

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into regulatedRouteDrilldown into flightDrilldown into instructionDrilldown into typeDrilldown into designatorXSD Diagram of FlightRestrictionPropertyGroup
Collapse XSD Schema Code:
<group name="FlightRestrictionPropertyGroup">
    <sequence>
        <element name="designator" type="aixm:CodeFlightRestrictionDesignatorType" nillable="true" minOccurs="0" />
        <element name="type" type="aixm:CodeFlightRestrictionType" nillable="true" minOccurs="0" />
        <element name="instruction" type="aixm:TextInstructionType" nillable="true" minOccurs="0" />
        <element name="flight" type="aixm:FlightConditionCombinationPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="regulatedRoute" type="aixm:FlightRestrictionRoutePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
designator aixm:designator 0 (1)
type aixm:type 0 (1)
instruction aixm:instruction 0 (1)
flight aixm:flight 0 1
regulatedRoute aixm:regulatedRoute 0 unbounded
annotation aixm:annotation 0 unbounded
