Documentation for AIXM 5.1.1
Definition Type: Group
Name: FlightRestrictionRoutePropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd
Collapse XSD Schema Diagram:

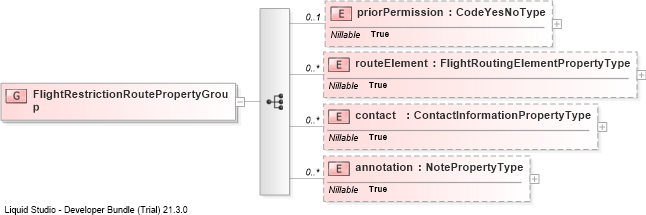

Drilldown into annotationDrilldown into contactDrilldown into routeElementDrilldown into priorPermissionXSD Diagram of FlightRestrictionRoutePropertyGroup
Collapse XSD Schema Code:
<group name="FlightRestrictionRoutePropertyGroup">
    <sequence>
        <element name="priorPermission" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="routeElement" type="aixm:FlightRoutingElementPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="contact" type="aixm:ContactInformationPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
priorPermission aixm:priorPermission 0 (1)
routeElement aixm:routeElement 0 unbounded
contact aixm:contact 0 unbounded
annotation aixm:annotation 0 unbounded
