Definition Type: Group
Name: FlightRoutingElementPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

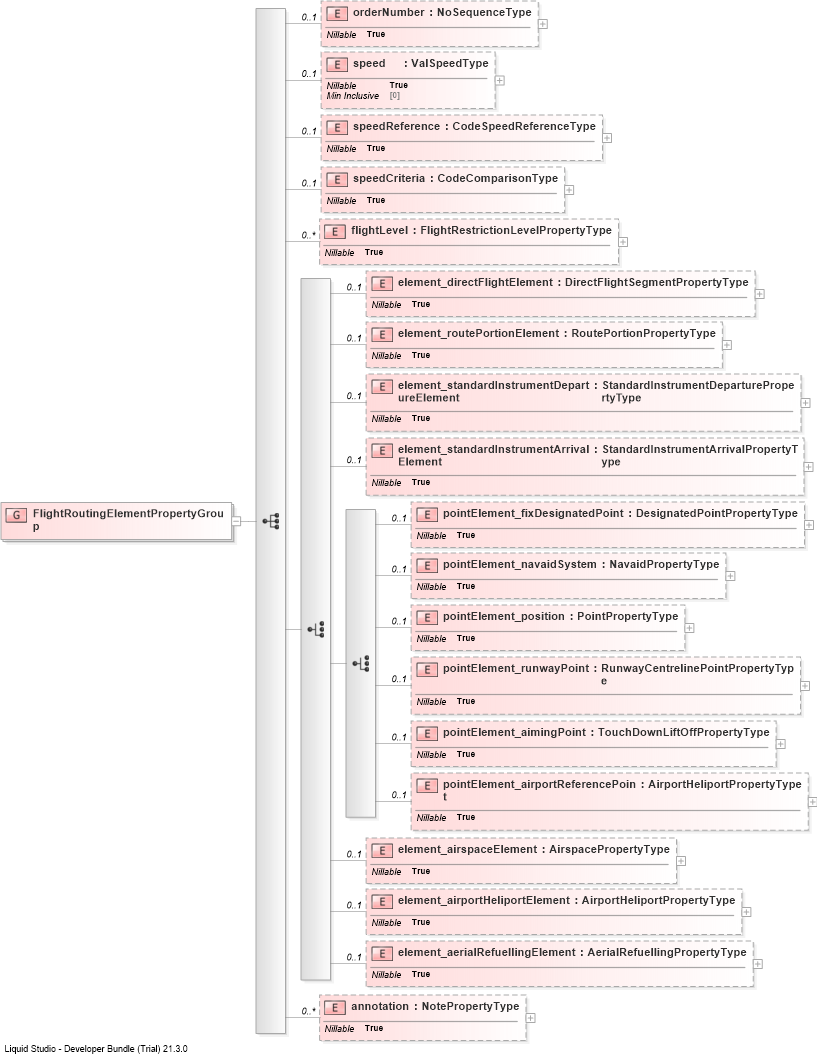

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into element_aerialRefuellingElementDrilldown into element_airportHeliportElementDrilldown into element_airspaceElementDrilldown into pointElement_airportReferencePointDrilldown into pointElement_aimingPointDrilldown into pointElement_runwayPointDrilldown into pointElement_positionDrilldown into pointElement_navaidSystemDrilldown into pointElement_fixDesignatedPointDrilldown into element_standardInstrumentArrivalElementDrilldown into element_standardInstrumentDepartureElementDrilldown into element_routePortionElementDrilldown into element_directFlightElementDrilldown into flightLevelDrilldown into speedCriteriaDrilldown into speedReferenceDrilldown into speedDrilldown into orderNumberXSD Diagram of FlightRoutingElementPropertyGroup
Collapse XSD Schema Code:
<group name="FlightRoutingElementPropertyGroup">
    <sequence>
        <element name="orderNumber" type="aixm:NoSequenceType" nillable="true" minOccurs="0" />
        <element name="speed" type="aixm:ValSpeedType" nillable="true" minOccurs="0" />
        <element name="speedReference" type="aixm:CodeSpeedReferenceType" nillable="true" minOccurs="0" />
        <element name="speedCriteria" type="aixm:CodeComparisonType" nillable="true" minOccurs="0" />
        <element name="flightLevel" type="aixm:FlightRestrictionLevelPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <choice>
            <element name="element_directFlightElement" type="aixm:DirectFlightSegmentPropertyType" nillable="true" minOccurs="0" />
            <element name="element_routePortionElement" type="aixm:RoutePortionPropertyType" nillable="true" minOccurs="0" />
            <element name="element_standardInstrumentDepartureElement" type="aixm:StandardInstrumentDeparturePropertyType" nillable="true" minOccurs="0" />
            <element name="element_standardInstrumentArrivalElement" type="aixm:StandardInstrumentArrivalPropertyType" nillable="true" minOccurs="0" />
            <choice>
                <element name="pointElement_fixDesignatedPoint" type="aixm:DesignatedPointPropertyType" nillable="true" minOccurs="0" />
                <element name="pointElement_navaidSystem" type="aixm:NavaidPropertyType" nillable="true" minOccurs="0" />
                <element name="pointElement_position" type="aixm:PointPropertyType" nillable="true" minOccurs="0" />
                <element name="pointElement_runwayPoint" type="aixm:RunwayCentrelinePointPropertyType" nillable="true" minOccurs="0" />
                <element name="pointElement_aimingPoint" type="aixm:TouchDownLiftOffPropertyType" nillable="true" minOccurs="0" />
                <element name="pointElement_airportReferencePoint" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" />
            </choice>
            <element name="element_airspaceElement" type="aixm:AirspacePropertyType" nillable="true" minOccurs="0" />
            <element name="element_airportHeliportElement" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" />
            <element name="element_aerialRefuellingElement" type="aixm:AerialRefuellingPropertyType" nillable="true" minOccurs="0" />
        </choice>
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
orderNumber aixm:orderNumber 0 (1)
speed aixm:speed 0 (1)
speedReference aixm:speedReference 0 (1)
speedCriteria aixm:speedCriteria 0 (1)
flightLevel aixm:flightLevel 0 unbounded
element_directFlightElement aixm:element_directFlightElement 0 (1)
element_routePortionElement aixm:element_routePortionElement 0 (1)
element_standardInstrumentDepartureElement aixm:element_standardInstrumentDepartureElement 0 (1)
element_standardInstrumentArrivalElement aixm:element_standardInstrumentArrivalElement 0 (1)
pointElement_fixDesignatedPoint aixm:pointElement_fixDesignatedPoint 0 (1)
pointElement_navaidSystem aixm:pointElement_navaidSystem 0 (1)
pointElement_position aixm:pointElement_position 0 (1)
pointElement_runwayPoint aixm:pointElement_runwayPoint 0 (1)
pointElement_aimingPoint aixm:pointElement_aimingPoint 0 (1)
pointElement_airportReferencePoint aixm:pointElement_airportReferencePoint 0 (1)
element_airspaceElement aixm:element_airspaceElement 0 (1)
element_airportHeliportElement aixm:element_airportHeliportElement 0 (1)
element_aerialRefuellingElement aixm:element_aerialRefuellingElement 0 (1)
annotation aixm:annotation 0 unbounded
