Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: GeneralTransformationPropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: coordinateOperations.xsd
Abstract
Documentation:
gml:GeneralTransformationPropertyType is a property type for association roles to a general transformation, either referencing or containing the definition of that transformation.

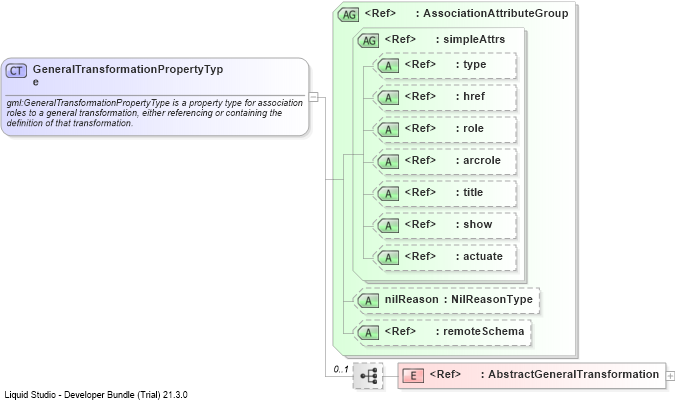

Collapse XSD Schema Diagram:
Drilldown into AbstractGeneralTransformationDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupXSD Diagram of GeneralTransformationPropertyType
Collapse XSD Schema Code:
<complexType name="GeneralTransformationPropertyType">
    <annotation>
        <documentation>gml:GeneralTransformationPropertyType is a property type for association roles to a general transformation, either referencing or containing the definition of that transformation.</documentation>
    </annotation>
    <sequence minOccurs="0">
        <element ref="gml:AbstractGeneralTransformation" />
    </sequence>
    <attributeGroup ref="gml:AssociationAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AbstractGeneralTransformation gml:AbstractGeneralTransformation (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
Collapse Derivation Tree:
Collapse References:
gml:generalTransformationRef
