Documentation for AIXM 5.1.1
Definition Type: Group
Name: GeoBorderPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd
Collapse XSD Schema Diagram:

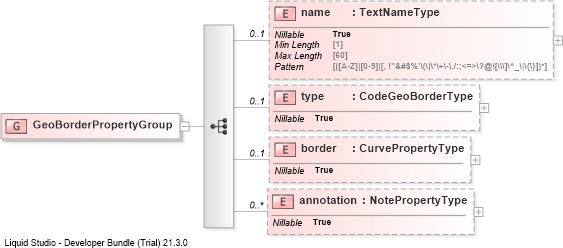

Drilldown into annotationDrilldown into borderDrilldown into typeDrilldown into nameXSD Diagram of GeoBorderPropertyGroup
Collapse XSD Schema Code:
<group name="GeoBorderPropertyGroup">
    <sequence>
        <element name="name" type="aixm:TextNameType" nillable="true" minOccurs="0" />
        <element name="type" type="aixm:CodeGeoBorderType" nillable="true" minOccurs="0" />
        <element name="border" type="aixm:CurvePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name aixm:name 0 (1)
type aixm:type 0 (1)
border aixm:border 0 1
annotation aixm:annotation 0 unbounded
