Definition Type: Element
Name: GeodesicString
Namespace: http://www.opengis.net/gml/3.2
Type: gml:GeodesicStringType
Containing Schema: geometryPrimitives.xsd
Abstract
Documentation:
A sequence of geodesic segments.
The number of control points shall be at least two.
interpolation is fixed as "geodesic".
The content model follows the general pattern for the encoding of curve segments.

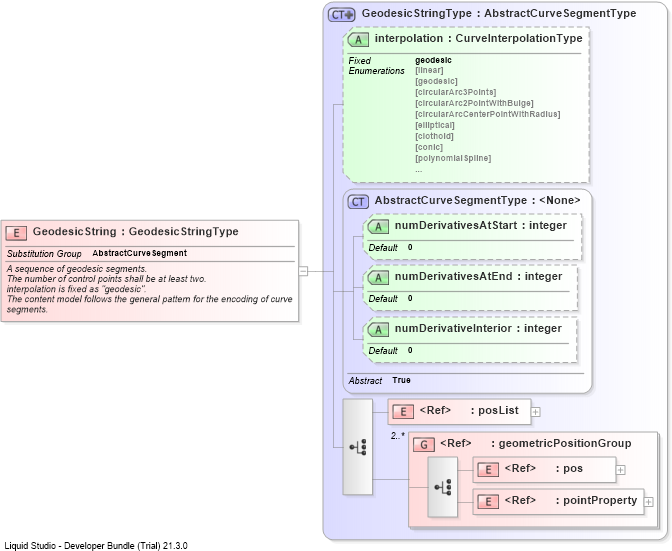

Collapse XSD Schema Diagram:
Drilldown into pointPropertyDrilldown into posDrilldown into geometricPositionGroupDrilldown into posListDrilldown into numDerivativeInteriorDrilldown into numDerivativesAtEndDrilldown into numDerivativesAtStartDrilldown into AbstractCurveSegmentTypeDrilldown into interpolationDrilldown into GeodesicStringTypeXSD Diagram of GeodesicString
Collapse XSD Schema Code:
<element name="GeodesicString" type="gml:GeodesicStringType" substitutionGroup="gml:AbstractCurveSegment">
    <annotation>
        <documentation>A sequence of geodesic segments.
The number of control points shall be at least two.
interpolation is fixed as "geodesic".
The content model follows the general pattern for the encoding of curve segments.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
posList gml:posList (1) (1)
pos gml:pos (1) (1)
pointProperty gml:pointProperty (1) (1)
<xs:group> gml:geometricPositionGroup 2 unbounded
Collapse Child Attributes:
Name Type Default Value Use
numDerivativesAtStart gml:numDerivativesAtStart 0 (Optional)
numDerivativesAtEnd gml:numDerivativesAtEnd 0 (Optional)
numDerivativeInterior gml:numDerivativeInterior 0 (Optional)
interpolation gml:interpolation (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractCurveSegment
