Definition Type: ComplexType
Name: GeometryPropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: geometryBasic0d1d.xsd
Abstract
Documentation:
A geometric property may either be any geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same or another document). Note that either the reference or the contained element shall be given, but not both or none.
If a feature has a property that takes a geometry element as its value, this is called a geometry property. A generic type for such a geometry property is GeometryPropertyType.

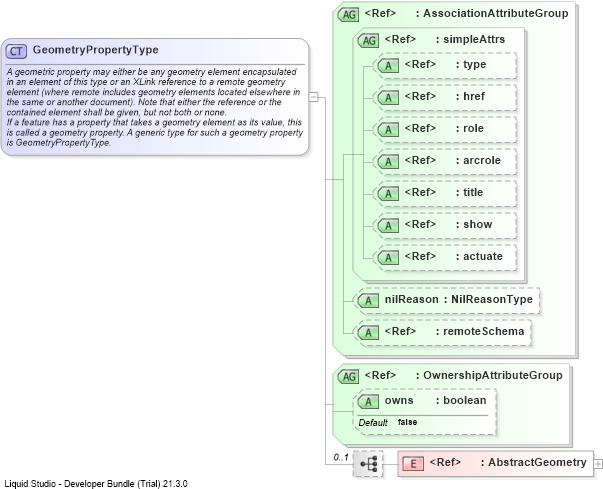

Collapse XSD Schema Diagram:
Drilldown into AbstractGeometryDrilldown into ownsDrilldown into OwnershipAttributeGroupDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupXSD Diagram of GeometryPropertyType
Collapse XSD Schema Code:
<complexType name="GeometryPropertyType">
    <annotation>
        <documentation>A geometric property may either be any geometry element encapsulated in an element of this type or an XLink reference to a remote geometry element (where remote includes geometry elements located elsewhere in the same or another document). Note that either the reference or the contained element shall be given, but not both or none.
If a feature has a property that takes a geometry element as its value, this is called a geometry property. A generic type for such a geometry property is GeometryPropertyType.</documentation>
    </annotation>
    <sequence minOccurs="0">
        <element ref="gml:AbstractGeometry" />
    </sequence>
    <attributeGroup ref="gml:AssociationAttributeGroup" />
    <attributeGroup ref="gml:OwnershipAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AbstractGeometry gml:AbstractGeometry (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
owns gml:owns false (Optional)
Collapse Derivation Tree:
Collapse References:
gml:geometryMembergml:position,
