Definition Type: Element
Name: Grid
Namespace: http://www.opengis.net/gml/3.2
Type: gml:GridType
Containing Schema: grids.xsd
Abstract
Documentation:
The gml:Grid implicitly defines an unrectified grid, which is a network composed of two or more sets of curves in which the members of each set intersect the members of the other sets in an algorithmic way.  The region of interest within the grid is given in terms of its gml:limits, being the grid coordinates of  diagonally opposed corners of a rectangular region.  gml:axisLabels is provided with a list of labels of the axes of the grid (gml:axisName has been deprecated). gml:dimension specifies the dimension of the grid.
The gml:limits element contains a single gml:GridEnvelope. The gml:low and gml:high property elements of the envelope are each integerLists, which are coordinate tuples, the coordinates being measured as offsets from the origin of the grid along each axis, of the diagonally opposing corners of a "rectangular" region of interest.
Collapse XSD Schema Diagram:

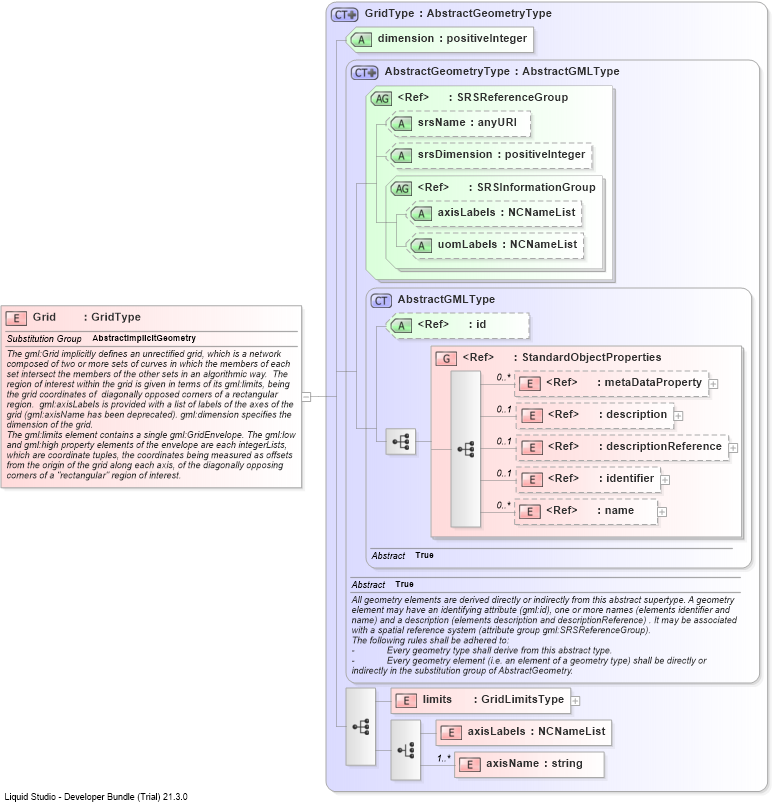

Drilldown into axisNameDrilldown into axisLabelsDrilldown into limitsDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into uomLabelsDrilldown into axisLabelsDrilldown into SRSInformationGroupDrilldown into srsDimensionDrilldown into srsNameDrilldown into SRSReferenceGroupDrilldown into AbstractGeometryTypeDrilldown into dimensionDrilldown into GridTypeXSD Diagram of Grid
Collapse XSD Schema Code:
<element name="Grid" type="gml:GridType" substitutionGroup="gml:AbstractImplicitGeometry">
    <annotation>
        <documentation>The gml:Grid implicitly defines an unrectified grid, which is a network composed of two or more sets of curves in which the members of each set intersect the members of the other sets in an algorithmic way.  The region of interest within the grid is given in terms of its gml:limits, being the grid coordinates of  diagonally opposed corners of a rectangular region.  gml:axisLabels is provided with a list of labels of the axes of the grid (gml:axisName has been deprecated). gml:dimension specifies the dimension of the grid.
The gml:limits element contains a single gml:GridEnvelope. The gml:low and gml:high property elements of the envelope are each integerLists, which are coordinate tuples, the coordinates being measured as offsets from the origin of the grid along each axis, of the diagonally opposing corners of a "rectangular" region of interest.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
limits gml:limits (1) (1)
axisLabels gml:axisLabels (1) (1)
axisName gml:axisName (1) unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
dimension gml:dimension Required
Collapse Derivation Tree:
Collapse References:
gml:AbstractImplicitGeometry
