Documentation for AIXM 5.1.1
Definition Type: Group
Name: GuidanceLinePropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

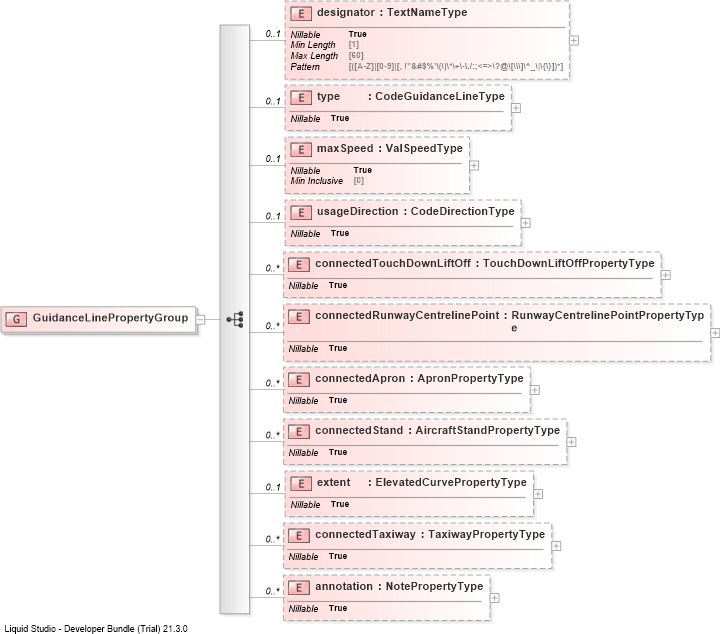

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into connectedTaxiwayDrilldown into extentDrilldown into connectedStandDrilldown into connectedApronDrilldown into connectedRunwayCentrelinePointDrilldown into connectedTouchDownLiftOffDrilldown into usageDirectionDrilldown into maxSpeedDrilldown into typeDrilldown into designatorXSD Diagram of GuidanceLinePropertyGroup
Collapse XSD Schema Code:
<group name="GuidanceLinePropertyGroup">
    <sequence>
        <element name="designator" type="aixm:TextNameType" nillable="true" minOccurs="0" />
        <element name="type" type="aixm:CodeGuidanceLineType" nillable="true" minOccurs="0" />
        <element name="maxSpeed" type="aixm:ValSpeedType" nillable="true" minOccurs="0" />
        <element name="usageDirection" type="aixm:CodeDirectionType" nillable="true" minOccurs="0" />
        <element name="connectedTouchDownLiftOff" type="aixm:TouchDownLiftOffPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="connectedRunwayCentrelinePoint" type="aixm:RunwayCentrelinePointPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="connectedApron" type="aixm:ApronPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="connectedStand" type="aixm:AircraftStandPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="extent" type="aixm:ElevatedCurvePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="connectedTaxiway" type="aixm:TaxiwayPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
designator aixm:designator 0 (1)
type aixm:type 0 (1)
maxSpeed aixm:maxSpeed 0 (1)
usageDirection aixm:usageDirection 0 (1)
connectedTouchDownLiftOff aixm:connectedTouchDownLiftOff 0 unbounded
connectedRunwayCentrelinePoint aixm:connectedRunwayCentrelinePoint 0 unbounded
connectedApron aixm:connectedApron 0 unbounded
connectedStand aixm:connectedStand 0 unbounded
extent aixm:extent 0 1
connectedTaxiway aixm:connectedTaxiway 0 unbounded
annotation aixm:annotation 0 unbounded
