Documentation for AIXM 5.1.1
Definition Type: Group
Name: HoldingUsePropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

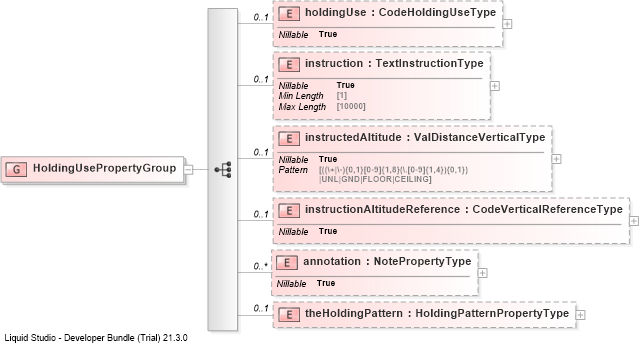

Collapse XSD Schema Diagram:
Drilldown into theHoldingPatternDrilldown into annotationDrilldown into instructionAltitudeReferenceDrilldown into instructedAltitudeDrilldown into instructionDrilldown into holdingUseXSD Diagram of HoldingUsePropertyGroup
Collapse XSD Schema Code:
<group name="HoldingUsePropertyGroup">
    <sequence>
        <element name="holdingUse" type="aixm:CodeHoldingUseType" nillable="true" minOccurs="0" />
        <element name="instruction" type="aixm:TextInstructionType" nillable="true" minOccurs="0" />
        <element name="instructedAltitude" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="instructionAltitudeReference" type="aixm:CodeVerticalReferenceType" nillable="true" minOccurs="0" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="theHoldingPattern" type="aixm:HoldingPatternPropertyType" minOccurs="0" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
holdingUse aixm:holdingUse 0 (1)
instruction aixm:instruction 0 (1)
instructedAltitude aixm:instructedAltitude 0 (1)
instructionAltitudeReference aixm:instructionAltitudeReference 0 (1)
annotation aixm:annotation 0 unbounded
theHoldingPattern aixm:theHoldingPattern 0 (1)
