Documentation for AIXM 5.1.1
Definition Type: Element
Name: intermediatePoint_runwayPoint
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:RunwayCentrelinePointPropertyType
Containing Schema: AIXM_Features.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

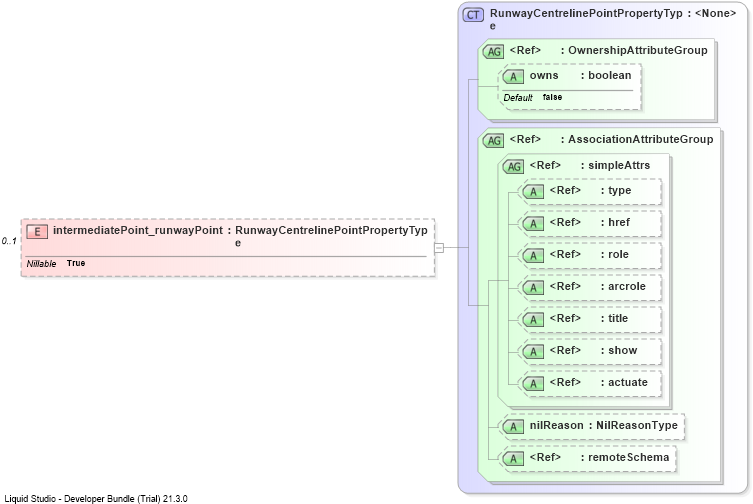

Collapse XSD Schema Diagram:
Drilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupDrilldown into ownsDrilldown into OwnershipAttributeGroupDrilldown into RunwayCentrelinePointPropertyTypeXSD Diagram of intermediatePoint_runwayPoint
Collapse XSD Schema Code:
<element name="intermediatePoint_runwayPoint" type="aixm:RunwayCentrelinePointPropertyType" nillable="true" minOccurs="0" />
Collapse Child Attributes:
Name Type Default Value Use
owns gml:owns false (Optional)
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
Collapse Derivation Tree:
Documentation for AIXM 5.1.1
Generated using Liquid Studio - Developer Bundle (Trial) 21.3.0
