Documentation for AIXM 5.1.1
Definition Type: Group
Name: LightActivationPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

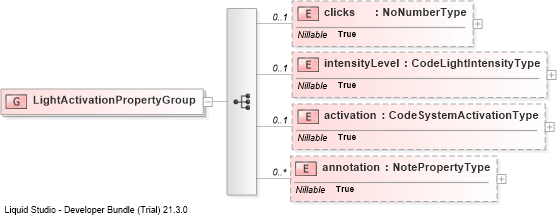

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into activationDrilldown into intensityLevelDrilldown into clicksXSD Diagram of LightActivationPropertyGroup
Collapse XSD Schema Code:
<group name="LightActivationPropertyGroup">
    <sequence>
        <element name="clicks" type="aixm:NoNumberType" nillable="true" minOccurs="0" />
        <element name="intensityLevel" type="aixm:CodeLightIntensityType" nillable="true" minOccurs="0" />
        <element name="activation" type="aixm:CodeSystemActivationType" nillable="true" minOccurs="0" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
clicks aixm:clicks 0 (1)
intensityLevel aixm:intensityLevel 0 (1)
activation aixm:activation 0 (1)
annotation aixm:annotation 0 unbounded
