Documentation for AIXM 5.1.1
Definition Type: Element
Name: LineStringSegment
Namespace: http://www.opengis.net/gml/3.2
Type: gml:LineStringSegmentType
Containing Schema: geometryPrimitives.xsd
Abstract
Documentation:
A LineStringSegment is a curve segment that is defined by two or more control points including the start and end point, with linear interpolation between them.
The content model follows the general pattern for the encoding of curve segments.

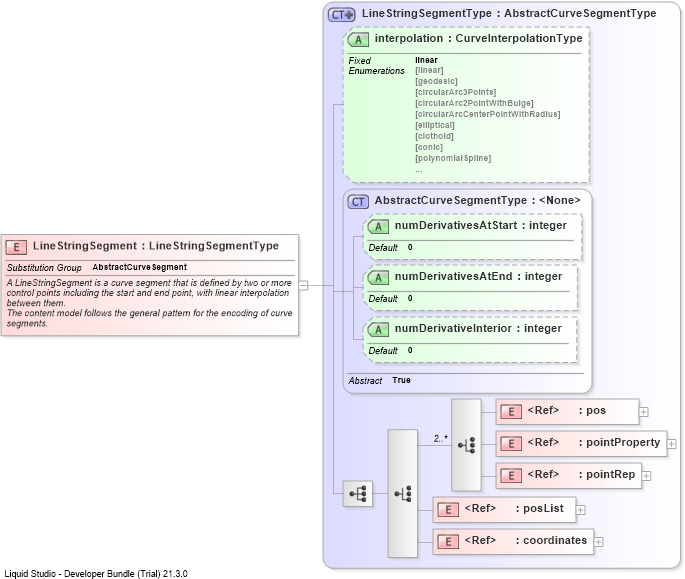

Collapse XSD Schema Diagram:
Drilldown into coordinatesDrilldown into posListDrilldown into pointRepDrilldown into pointPropertyDrilldown into posDrilldown into numDerivativeInteriorDrilldown into numDerivativesAtEndDrilldown into numDerivativesAtStartDrilldown into AbstractCurveSegmentTypeDrilldown into interpolationDrilldown into LineStringSegmentTypeXSD Diagram of LineStringSegment
Collapse XSD Schema Code:
<element name="LineStringSegment" type="gml:LineStringSegmentType" substitutionGroup="gml:AbstractCurveSegment">
    <annotation>
        <documentation>A LineStringSegment is a curve segment that is defined by two or more control points including the start and end point, with linear interpolation between them.
The content model follows the general pattern for the encoding of curve segments.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
pos gml:pos (1) (1)
pointProperty gml:pointProperty (1) (1)
pointRep gml:pointRep (1) (1)
posList gml:posList (1) (1)
coordinates gml:coordinates (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
numDerivativesAtStart gml:numDerivativesAtStart 0 (Optional)
numDerivativesAtEnd gml:numDerivativesAtEnd 0 (Optional)
numDerivativeInterior gml:numDerivativeInterior 0 (Optional)
interpolation gml:interpolation (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractCurveSegment
