Documentation for AIXM 5.1.1
Definition Type: Group
Name: MarkingBuoyPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

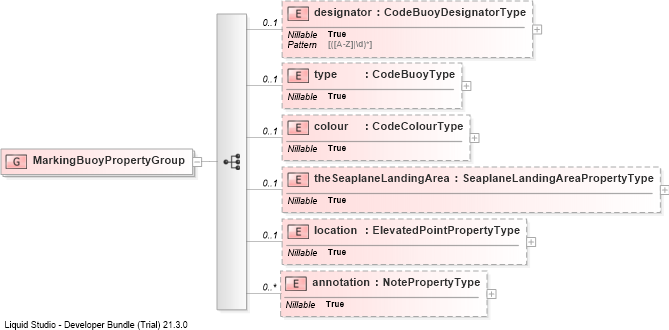

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into locationDrilldown into theSeaplaneLandingAreaDrilldown into colourDrilldown into typeDrilldown into designatorXSD Diagram of MarkingBuoyPropertyGroup
Collapse XSD Schema Code:
<group name="MarkingBuoyPropertyGroup">
    <sequence>
        <element name="designator" type="aixm:CodeBuoyDesignatorType" nillable="true" minOccurs="0" />
        <element name="type" type="aixm:CodeBuoyType" nillable="true" minOccurs="0" />
        <element name="colour" type="aixm:CodeColourType" nillable="true" minOccurs="0" />
        <element name="theSeaplaneLandingArea" type="aixm:SeaplaneLandingAreaPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="location" type="aixm:ElevatedPointPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
designator aixm:designator 0 (1)
type aixm:type 0 (1)
colour aixm:colour 0 (1)
theSeaplaneLandingArea aixm:theSeaplaneLandingArea 0 1
location aixm:location 0 1
annotation aixm:annotation 0 unbounded
