Documentation for AIXM 5.1.1
Definition Type: Element
Name: MD_Band
Namespace: http://www.isotc211.org/2005/gmd
Type: gmd:MD_Band_Type
Containing Schema: content.xsd
Abstract

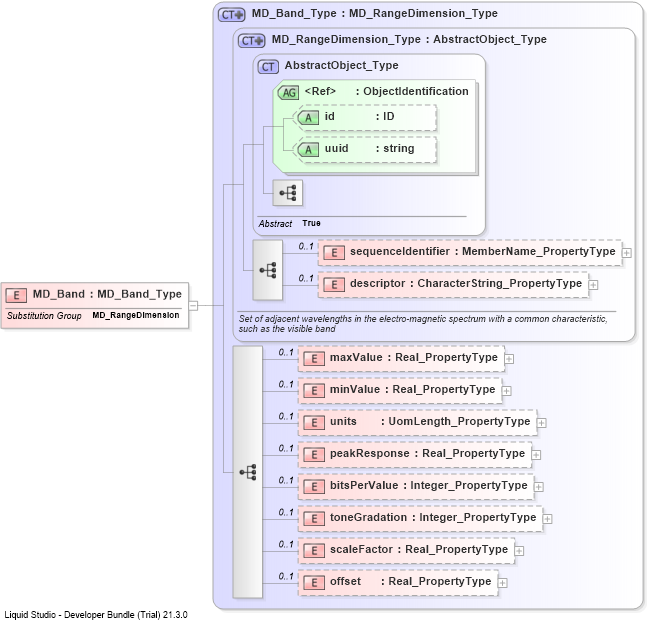

Collapse XSD Schema Diagram:
Drilldown into offsetDrilldown into scaleFactorDrilldown into toneGradationDrilldown into bitsPerValueDrilldown into peakResponseDrilldown into unitsDrilldown into minValueDrilldown into maxValueDrilldown into descriptorDrilldown into sequenceIdentifierDrilldown into uuidDrilldown into idDrilldown into ObjectIdentificationDrilldown into AbstractObject_TypeDrilldown into MD_RangeDimension_TypeDrilldown into MD_Band_TypeXSD Diagram of MD_Band
Collapse XSD Schema Code:
<xs:element name="MD_Band" type="gmd:MD_Band_Type" substitutionGroup="gmd:MD_RangeDimension" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
sequenceIdentifier gmd:sequenceIdentifier 0 (1)
descriptor gmd:descriptor 0 (1)
maxValue gmd:maxValue 0 (1)
minValue gmd:minValue 0 (1)
units gmd:units 0 (1)
peakResponse gmd:peakResponse 0 (1)
bitsPerValue gmd:bitsPerValue 0 (1)
toneGradation gmd:toneGradation 0 (1)
scaleFactor gmd:scaleFactor 0 (1)
offset gmd:offset 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id gco:id (Optional)
uuid gco:uuid (Optional)
Collapse Derivation Tree:
Collapse References:
gmd:MD_RangeDimension
