Definition Type: ComplexType
Name: MD_BrowseGraphic_Type
Namespace: http://www.isotc211.org/2005/gmd
Type: gco:AbstractObject_Type
Containing Schema: identification.xsd
Abstract
Documentation:
Graphic that provides an illustration of the dataset (should include a legend for the graphic)

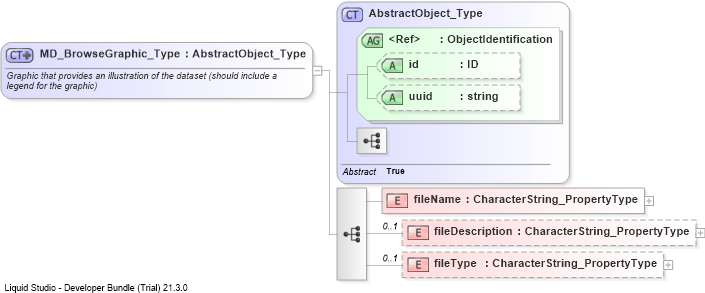

Collapse XSD Schema Diagram:
Drilldown into fileTypeDrilldown into fileDescriptionDrilldown into fileNameDrilldown into uuidDrilldown into idDrilldown into ObjectIdentificationDrilldown into AbstractObject_TypeXSD Diagram of MD_BrowseGraphic_Type
Collapse XSD Schema Code:
<xs:complexType name="MD_BrowseGraphic_Type">
    <xs:annotation>
        <xs:documentation>Graphic that provides an illustration of the dataset (should include a legend for the graphic)</xs:documentation>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="gco:AbstractObject_Type">
            <xs:sequence>
                <xs:element name="fileName" type="gco:CharacterString_PropertyType" />
                <xs:element name="fileDescription" type="gco:CharacterString_PropertyType" minOccurs="0" />
                <xs:element name="fileType" type="gco:CharacterString_PropertyType" minOccurs="0" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
fileName gmd:fileName (1) (1)
fileDescription gmd:fileDescription 0 (1)
fileType gmd:fileType 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id gco:id (Optional)
uuid gco:uuid (Optional)
Collapse Derivation Tree:
Collapse References:
gmd:MD_BrowseGraphic
