Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: MD_DigitalTransferOptions_Type
Namespace: http://www.isotc211.org/2005/gmd
Type: gco:AbstractObject_Type
Containing Schema: distribution.xsd
Abstract
Documentation:
Technical means and media by which a dataset is obtained from the distributor

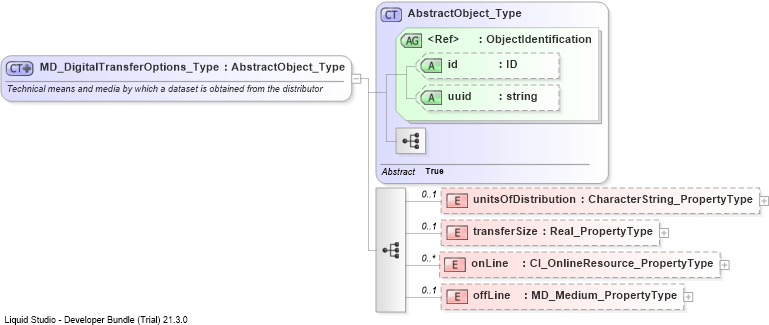

Collapse XSD Schema Diagram:
Drilldown into offLineDrilldown into onLineDrilldown into transferSizeDrilldown into unitsOfDistributionDrilldown into uuidDrilldown into idDrilldown into ObjectIdentificationDrilldown into AbstractObject_TypeXSD Diagram of MD_DigitalTransferOptions_Type
Collapse XSD Schema Code:
<xs:complexType name="MD_DigitalTransferOptions_Type">
    <xs:annotation>
        <xs:documentation>Technical means and media by which a dataset is obtained from the distributor</xs:documentation>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="gco:AbstractObject_Type">
            <xs:sequence>
                <xs:element name="unitsOfDistribution" type="gco:CharacterString_PropertyType" minOccurs="0" />
                <xs:element name="transferSize" type="gco:Real_PropertyType" minOccurs="0" />
                <xs:element name="onLine" type="gmd:CI_OnlineResource_PropertyType" minOccurs="0" maxOccurs="unbounded" />
                <xs:element name="offLine" type="gmd:MD_Medium_PropertyType" minOccurs="0" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
unitsOfDistribution gmd:unitsOfDistribution 0 (1)
transferSize gmd:transferSize 0 (1)
onLine gmd:onLine 0 unbounded
offLine gmd:offLine 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id gco:id (Optional)
uuid gco:uuid (Optional)
Collapse Derivation Tree:
Collapse References:
gmd:MD_DigitalTransferOptions
