Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: MD_ExtendedElementInformation_Type
Namespace: http://www.isotc211.org/2005/gmd
Type: gco:AbstractObject_Type
Containing Schema: metadataExtension.xsd
Abstract
Documentation:
New metadata element, not found in ISO 19115, which is required to describe geographic data

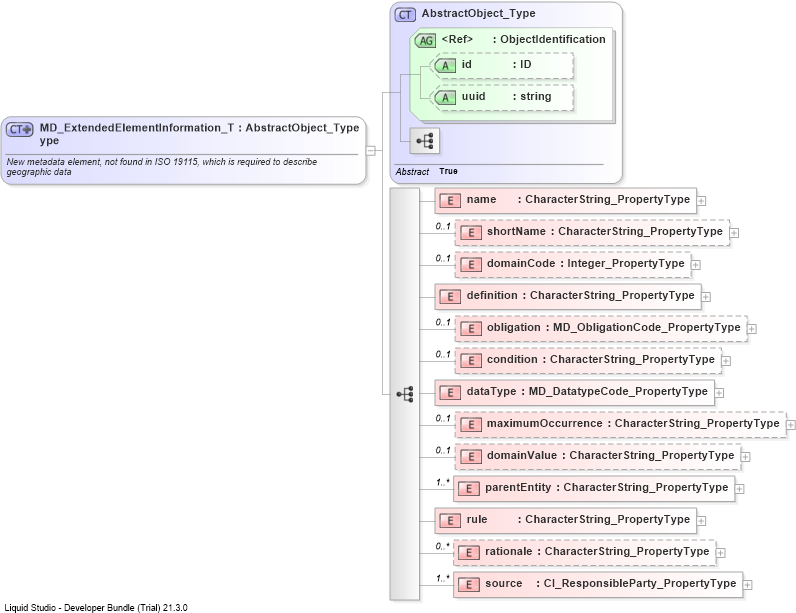

Collapse XSD Schema Diagram:
Drilldown into sourceDrilldown into rationaleDrilldown into ruleDrilldown into parentEntityDrilldown into domainValueDrilldown into maximumOccurrenceDrilldown into dataTypeDrilldown into conditionDrilldown into obligationDrilldown into definitionDrilldown into domainCodeDrilldown into shortNameDrilldown into nameDrilldown into uuidDrilldown into idDrilldown into ObjectIdentificationDrilldown into AbstractObject_TypeXSD Diagram of MD_ExtendedElementInformation_Type
Collapse XSD Schema Code:
<xs:complexType name="MD_ExtendedElementInformation_Type">
    <xs:annotation>
        <xs:documentation>New metadata element, not found in ISO 19115, which is required to describe geographic data</xs:documentation>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="gco:AbstractObject_Type">
            <xs:sequence>
                <xs:element name="name" type="gco:CharacterString_PropertyType" />
                <xs:element name="shortName" type="gco:CharacterString_PropertyType" minOccurs="0" />
                <xs:element name="domainCode" type="gco:Integer_PropertyType" minOccurs="0" />
                <xs:element name="definition" type="gco:CharacterString_PropertyType" />
                <xs:element name="obligation" type="gmd:MD_ObligationCode_PropertyType" minOccurs="0" />
                <xs:element name="condition" type="gco:CharacterString_PropertyType" minOccurs="0" />
                <xs:element name="dataType" type="gmd:MD_DatatypeCode_PropertyType" />
                <xs:element name="maximumOccurrence" type="gco:CharacterString_PropertyType" minOccurs="0" />
                <xs:element name="domainValue" type="gco:CharacterString_PropertyType" minOccurs="0" />
                <xs:element name="parentEntity" type="gco:CharacterString_PropertyType" maxOccurs="unbounded" />
                <xs:element name="rule" type="gco:CharacterString_PropertyType" />
                <xs:element name="rationale" type="gco:CharacterString_PropertyType" minOccurs="0" maxOccurs="unbounded" />
                <xs:element name="source" type="gmd:CI_ResponsibleParty_PropertyType" maxOccurs="unbounded" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name gmd:name (1) (1)
shortName gmd:shortName 0 (1)
domainCode gmd:domainCode 0 (1)
definition gmd:definition (1) (1)
obligation gmd:obligation 0 (1)
condition gmd:condition 0 (1)
dataType gmd:dataType (1) (1)
maximumOccurrence gmd:maximumOccurrence 0 (1)
domainValue gmd:domainValue 0 (1)
parentEntity gmd:parentEntity (1) unbounded
rule gmd:rule (1) (1)
rationale gmd:rationale 0 unbounded
source gmd:source (1) unbounded
Collapse Child Attributes:
Name Type Default Value Use
id gco:id (Optional)
uuid gco:uuid (Optional)
Collapse Derivation Tree:
Collapse References:
gmd:MD_ExtendedElementInformation
