Documentation for AIXM 5.1.1
Definition Type: Group
Name: MeteorologyPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

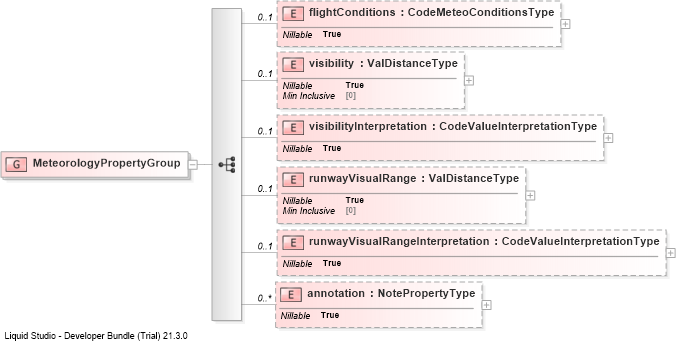

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into runwayVisualRangeInterpretationDrilldown into runwayVisualRangeDrilldown into visibilityInterpretationDrilldown into visibilityDrilldown into flightConditionsXSD Diagram of MeteorologyPropertyGroup
Collapse XSD Schema Code:
<group name="MeteorologyPropertyGroup">
    <sequence>
        <element name="flightConditions" type="aixm:CodeMeteoConditionsType" nillable="true" minOccurs="0" />
        <element name="visibility" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="visibilityInterpretation" type="aixm:CodeValueInterpretationType" nillable="true" minOccurs="0" />
        <element name="runwayVisualRange" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="runwayVisualRangeInterpretation" type="aixm:CodeValueInterpretationType" nillable="true" minOccurs="0" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
flightConditions aixm:flightConditions 0 (1)
visibility aixm:visibility 0 (1)
visibilityInterpretation aixm:visibilityInterpretation 0 (1)
runwayVisualRange aixm:runwayVisualRange 0 (1)
runwayVisualRangeInterpretation aixm:runwayVisualRangeInterpretation 0 (1)
annotation aixm:annotation 0 unbounded
