Documentation for AIXM 5.1.1
Definition Type: Group
Name: MinimaPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

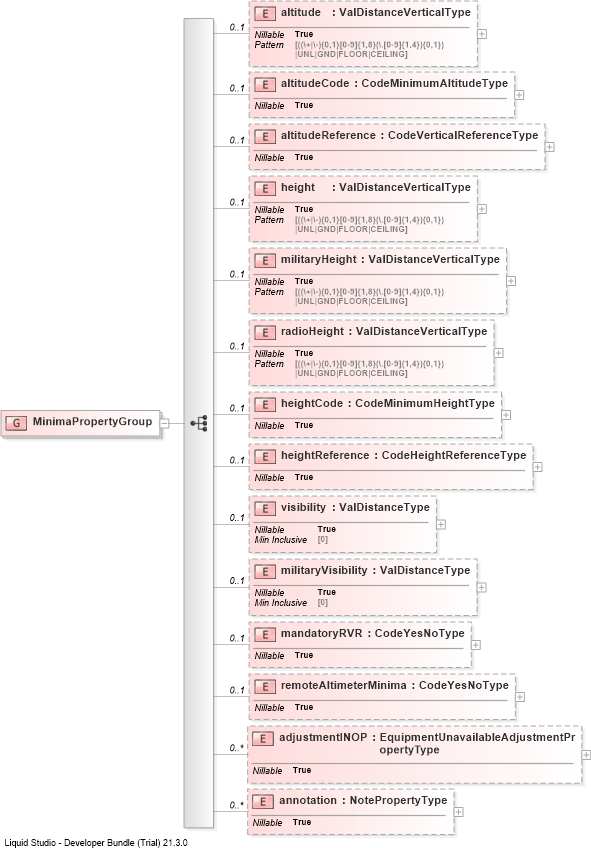

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into adjustmentINOPDrilldown into remoteAltimeterMinimaDrilldown into mandatoryRVRDrilldown into militaryVisibilityDrilldown into visibilityDrilldown into heightReferenceDrilldown into heightCodeDrilldown into radioHeightDrilldown into militaryHeightDrilldown into heightDrilldown into altitudeReferenceDrilldown into altitudeCodeDrilldown into altitudeXSD Diagram of MinimaPropertyGroup
Collapse XSD Schema Code:
<group name="MinimaPropertyGroup">
    <sequence>
        <element name="altitude" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="altitudeCode" type="aixm:CodeMinimumAltitudeType" nillable="true" minOccurs="0" />
        <element name="altitudeReference" type="aixm:CodeVerticalReferenceType" nillable="true" minOccurs="0" />
        <element name="height" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="militaryHeight" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="radioHeight" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="heightCode" type="aixm:CodeMinimumHeightType" nillable="true" minOccurs="0" />
        <element name="heightReference" type="aixm:CodeHeightReferenceType" nillable="true" minOccurs="0" />
        <element name="visibility" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="militaryVisibility" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="mandatoryRVR" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="remoteAltimeterMinima" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="adjustmentINOP" type="aixm:EquipmentUnavailableAdjustmentPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
altitude aixm:altitude 0 (1)
altitudeCode aixm:altitudeCode 0 (1)
altitudeReference aixm:altitudeReference 0 (1)
height aixm:height 0 (1)
militaryHeight aixm:militaryHeight 0 (1)
radioHeight aixm:radioHeight 0 (1)
heightCode aixm:heightCode 0 (1)
heightReference aixm:heightReference 0 (1)
visibility aixm:visibility 0 (1)
militaryVisibility aixm:militaryVisibility 0 (1)
mandatoryRVR aixm:mandatoryRVR 0 (1)
remoteAltimeterMinima aixm:remoteAltimeterMinima 0 (1)
adjustmentINOP aixm:adjustmentINOP 0 unbounded
annotation aixm:annotation 0 unbounded
