Definition Type: Group
Name: MissedApproachLegPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd
Collapse XSD Schema Diagram:

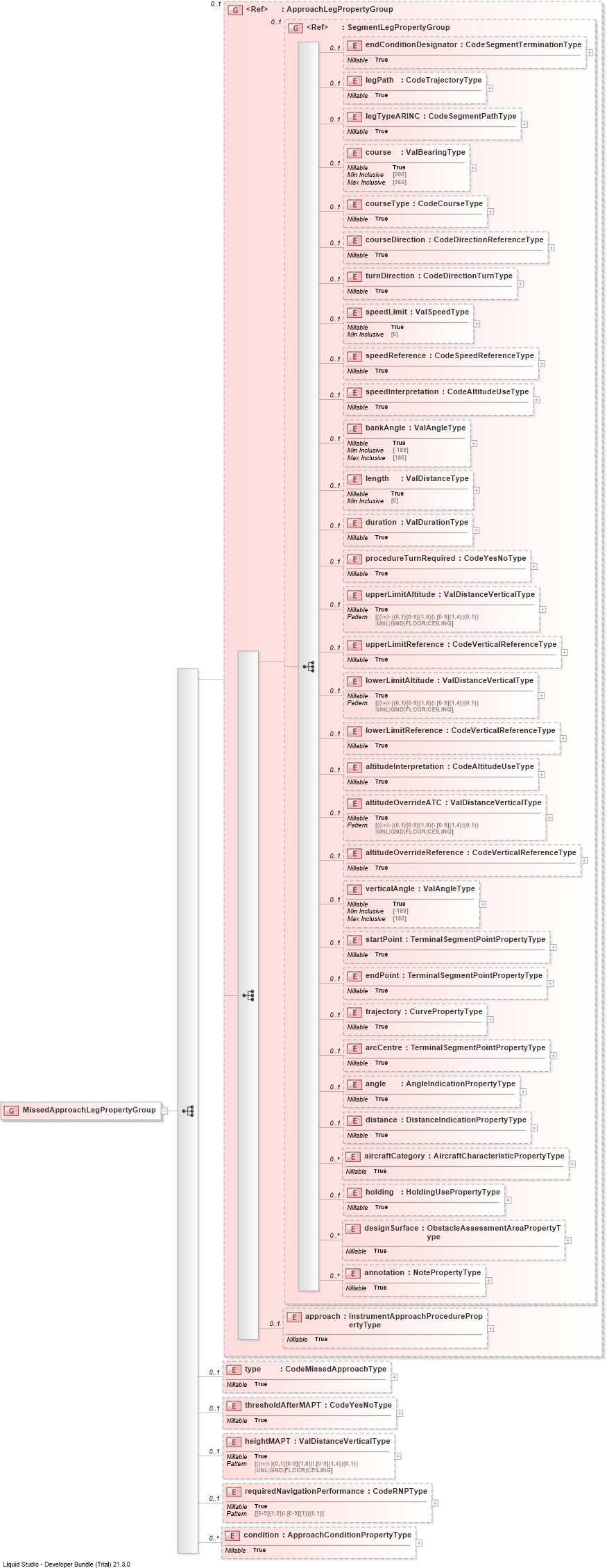

Drilldown into conditionDrilldown into requiredNavigationPerformanceDrilldown into heightMAPTDrilldown into thresholdAfterMAPTDrilldown into typeDrilldown into approachDrilldown into annotationDrilldown into designSurfaceDrilldown into holdingDrilldown into aircraftCategoryDrilldown into distanceDrilldown into angleDrilldown into arcCentreDrilldown into trajectoryDrilldown into endPointDrilldown into startPointDrilldown into verticalAngleDrilldown into altitudeOverrideReferenceDrilldown into altitudeOverrideATCDrilldown into altitudeInterpretationDrilldown into lowerLimitReferenceDrilldown into lowerLimitAltitudeDrilldown into upperLimitReferenceDrilldown into upperLimitAltitudeDrilldown into procedureTurnRequiredDrilldown into durationDrilldown into lengthDrilldown into bankAngleDrilldown into speedInterpretationDrilldown into speedReferenceDrilldown into speedLimitDrilldown into turnDirectionDrilldown into courseDirectionDrilldown into courseTypeDrilldown into courseDrilldown into legTypeARINCDrilldown into legPathDrilldown into endConditionDesignatorDrilldown into SegmentLegPropertyGroupDrilldown into ApproachLegPropertyGroupXSD Diagram of MissedApproachLegPropertyGroup
Collapse XSD Schema Code:
<group name="MissedApproachLegPropertyGroup">
    <sequence>
        <group ref="aixm:ApproachLegPropertyGroup" minOccurs="0" />
        <element name="type" type="aixm:CodeMissedApproachType" nillable="true" minOccurs="0" />
        <element name="thresholdAfterMAPT" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="heightMAPT" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="requiredNavigationPerformance" type="aixm:CodeRNPType" nillable="true" minOccurs="0" />
        <element name="condition" type="aixm:ApproachConditionPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
endConditionDesignator aixm:endConditionDesignator 0 (1)
legPath aixm:legPath 0 (1)
legTypeARINC aixm:legTypeARINC 0 (1)
course aixm:course 0 (1)
courseType aixm:courseType 0 (1)
courseDirection aixm:courseDirection 0 (1)
turnDirection aixm:turnDirection 0 (1)
speedLimit aixm:speedLimit 0 (1)
speedReference aixm:speedReference 0 (1)
speedInterpretation aixm:speedInterpretation 0 (1)
bankAngle aixm:bankAngle 0 (1)
length aixm:length 0 (1)
duration aixm:duration 0 (1)
procedureTurnRequired aixm:procedureTurnRequired 0 (1)
upperLimitAltitude aixm:upperLimitAltitude 0 (1)
upperLimitReference aixm:upperLimitReference 0 (1)
lowerLimitAltitude aixm:lowerLimitAltitude 0 (1)
lowerLimitReference aixm:lowerLimitReference 0 (1)
altitudeInterpretation aixm:altitudeInterpretation 0 (1)
altitudeOverrideATC aixm:altitudeOverrideATC 0 (1)
altitudeOverrideReference aixm:altitudeOverrideReference 0 (1)
verticalAngle aixm:verticalAngle 0 (1)
startPoint aixm:startPoint 0 1
endPoint aixm:endPoint 0 1
trajectory aixm:trajectory 0 1
arcCentre aixm:arcCentre 0 1
angle aixm:angle 0 1
distance aixm:distance 0 1
aircraftCategory aixm:aircraftCategory 0 unbounded
holding aixm:holding 0 1
designSurface aixm:designSurface 0 unbounded
annotation aixm:annotation 0 unbounded
approach aixm:approach 0 1
type aixm:type 0 (1)
thresholdAfterMAPT aixm:thresholdAfterMAPT 0 (1)
heightMAPT aixm:heightMAPT 0 (1)
requiredNavigationPerformance aixm:requiredNavigationPerformance 0 (1)
condition aixm:condition 0 unbounded
<xs:group> aixm:ApproachLegPropertyGroup 0 (1)
<xs:group> aixm:SegmentLegPropertyGroup 0 (1)
