Definition Type: Element
Name: MultiCurve
Namespace: http://www.opengis.net/gml/3.2
Type: gml:MultiCurveType
Containing Schema: geometryAggregates.xsd
Abstract
Documentation:
A gml:MultiCurve is defined by one or more gml:AbstractCurves.
The members of the geometric aggregate may be specified either using the "standard" property (gml:curveMember) or the array property (gml:curveMembers). It is also valid to use both the "standard" and the array properties in the same collection.

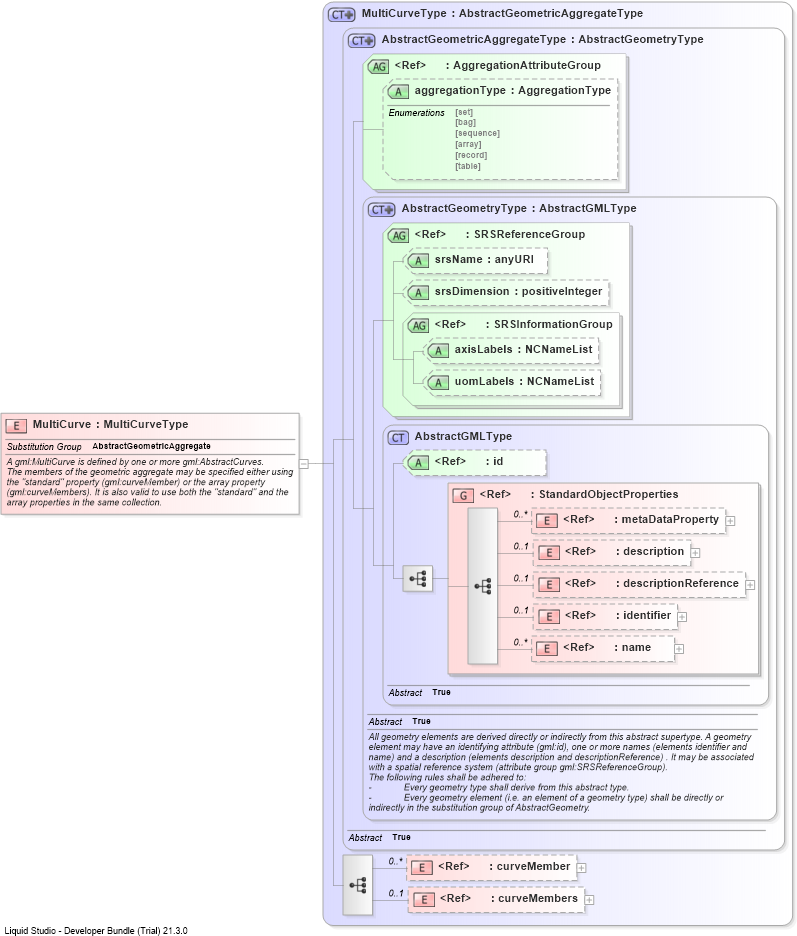

Collapse XSD Schema Diagram:
Drilldown into curveMembersDrilldown into curveMemberDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into uomLabelsDrilldown into axisLabelsDrilldown into SRSInformationGroupDrilldown into srsDimensionDrilldown into srsNameDrilldown into SRSReferenceGroupDrilldown into AbstractGeometryTypeDrilldown into aggregationTypeDrilldown into AggregationAttributeGroupDrilldown into AbstractGeometricAggregateTypeDrilldown into MultiCurveTypeXSD Diagram of MultiCurve
Collapse XSD Schema Code:
<element name="MultiCurve" type="gml:MultiCurveType" substitutionGroup="gml:AbstractGeometricAggregate">
    <annotation>
        <documentation>A gml:MultiCurve is defined by one or more gml:AbstractCurves.
The members of the geometric aggregate may be specified either using the "standard" property (gml:curveMember) or the array property (gml:curveMembers). It is also valid to use both the "standard" and the array properties in the same collection.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
curveMember gml:curveMember 0 unbounded
curveMembers gml:curveMembers 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
aggregationType gml:aggregationType (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractGeometricAggregate
