Documentation for AIXM 5.1.1
Definition Type: Group
Name: NavaidComponentPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

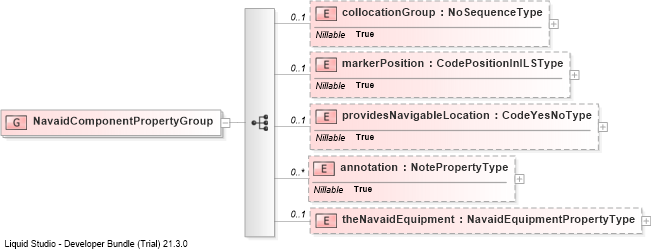

Collapse XSD Schema Diagram:
Drilldown into theNavaidEquipmentDrilldown into annotationDrilldown into providesNavigableLocationDrilldown into markerPositionDrilldown into collocationGroupXSD Diagram of NavaidComponentPropertyGroup
Collapse XSD Schema Code:
<group name="NavaidComponentPropertyGroup">
    <sequence>
        <element name="collocationGroup" type="aixm:NoSequenceType" nillable="true" minOccurs="0" />
        <element name="markerPosition" type="aixm:CodePositionInILSType" nillable="true" minOccurs="0" />
        <element name="providesNavigableLocation" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="theNavaidEquipment" type="aixm:NavaidEquipmentPropertyType" minOccurs="0" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
collocationGroup aixm:collocationGroup 0 (1)
markerPosition aixm:markerPosition 0 (1)
providesNavigableLocation aixm:providesNavigableLocation 0 (1)
annotation aixm:annotation 0 unbounded
theNavaidEquipment aixm:theNavaidEquipment 0 (1)
