Documentation for AIXM 5.1.1
Definition Type: Group
Name: NavaidEquipmentDistancePropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

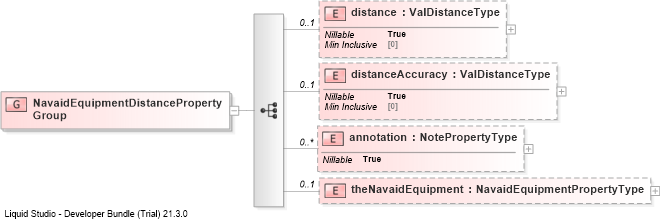

Collapse XSD Schema Diagram:
Drilldown into theNavaidEquipmentDrilldown into annotationDrilldown into distanceAccuracyDrilldown into distanceXSD Diagram of NavaidEquipmentDistancePropertyGroup
Collapse XSD Schema Code:
<group name="NavaidEquipmentDistancePropertyGroup">
    <sequence>
        <element name="distance" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="distanceAccuracy" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="theNavaidEquipment" type="aixm:NavaidEquipmentPropertyType" minOccurs="0" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
distance aixm:distance 0 (1)
distanceAccuracy aixm:distanceAccuracy 0 (1)
annotation aixm:annotation 0 unbounded
theNavaidEquipment aixm:theNavaidEquipment 0 (1)
