Definition Type: Group
Name: NavaidPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

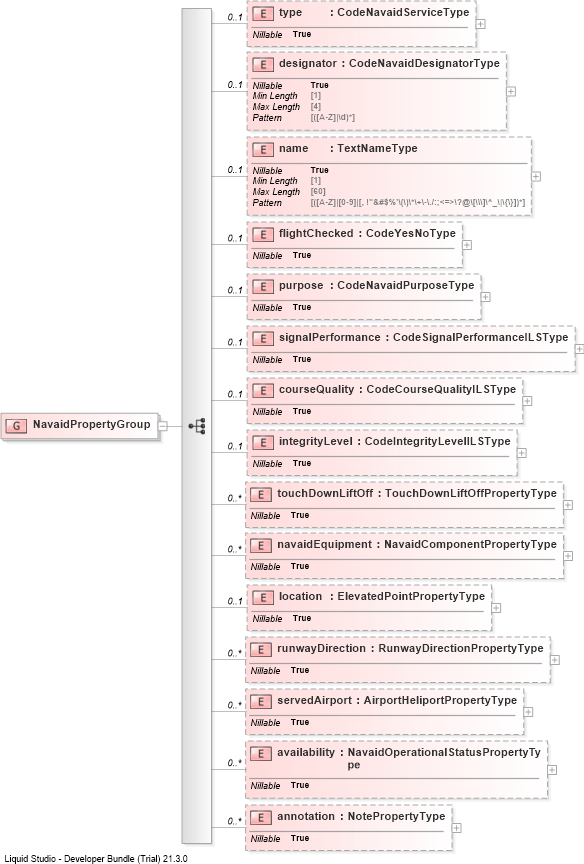

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into availabilityDrilldown into servedAirportDrilldown into runwayDirectionDrilldown into locationDrilldown into navaidEquipmentDrilldown into touchDownLiftOffDrilldown into integrityLevelDrilldown into courseQualityDrilldown into signalPerformanceDrilldown into purposeDrilldown into flightCheckedDrilldown into nameDrilldown into designatorDrilldown into typeXSD Diagram of NavaidPropertyGroup
Collapse XSD Schema Code:
<group name="NavaidPropertyGroup">
    <sequence>
        <element name="type" type="aixm:CodeNavaidServiceType" nillable="true" minOccurs="0" />
        <element name="designator" type="aixm:CodeNavaidDesignatorType" nillable="true" minOccurs="0" />
        <element name="name" type="aixm:TextNameType" nillable="true" minOccurs="0" />
        <element name="flightChecked" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="purpose" type="aixm:CodeNavaidPurposeType" nillable="true" minOccurs="0" />
        <element name="signalPerformance" type="aixm:CodeSignalPerformanceILSType" nillable="true" minOccurs="0" />
        <element name="courseQuality" type="aixm:CodeCourseQualityILSType" nillable="true" minOccurs="0" />
        <element name="integrityLevel" type="aixm:CodeIntegrityLevelILSType" nillable="true" minOccurs="0" />
        <element name="touchDownLiftOff" type="aixm:TouchDownLiftOffPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="navaidEquipment" type="aixm:NavaidComponentPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="location" type="aixm:ElevatedPointPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="runwayDirection" type="aixm:RunwayDirectionPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="servedAirport" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="availability" type="aixm:NavaidOperationalStatusPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
type aixm:type 0 (1)
designator aixm:designator 0 (1)
name aixm:name 0 (1)
flightChecked aixm:flightChecked 0 (1)
purpose aixm:purpose 0 (1)
signalPerformance aixm:signalPerformance 0 (1)
courseQuality aixm:courseQuality 0 (1)
integrityLevel aixm:integrityLevel 0 (1)
touchDownLiftOff aixm:touchDownLiftOff 0 unbounded
navaidEquipment aixm:navaidEquipment 0 unbounded
location aixm:location 0 1
runwayDirection aixm:runwayDirection 0 unbounded
servedAirport aixm:servedAirport 0 unbounded
availability aixm:availability 0 unbounded
annotation aixm:annotation 0 unbounded
