Documentation for AIXM 5.1.1
Definition Type: Group
Name: NavigationAreaPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

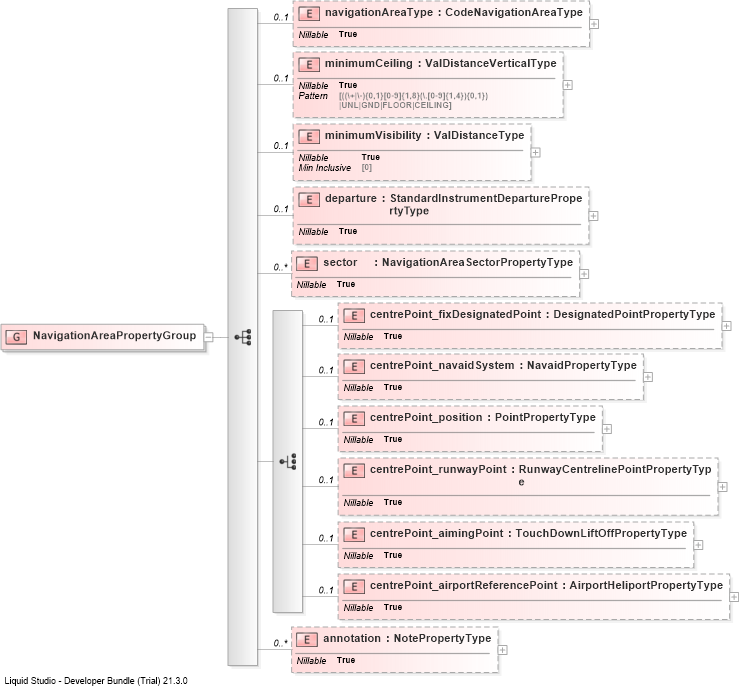

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into centrePoint_airportReferencePointDrilldown into centrePoint_aimingPointDrilldown into centrePoint_runwayPointDrilldown into centrePoint_positionDrilldown into centrePoint_navaidSystemDrilldown into centrePoint_fixDesignatedPointDrilldown into sectorDrilldown into departureDrilldown into minimumVisibilityDrilldown into minimumCeilingDrilldown into navigationAreaTypeXSD Diagram of NavigationAreaPropertyGroup
Collapse XSD Schema Code:
<group name="NavigationAreaPropertyGroup">
    <sequence>
        <element name="navigationAreaType" type="aixm:CodeNavigationAreaType" nillable="true" minOccurs="0" />
        <element name="minimumCeiling" type="aixm:ValDistanceVerticalType" nillable="true" minOccurs="0" />
        <element name="minimumVisibility" type="aixm:ValDistanceType" nillable="true" minOccurs="0" />
        <element name="departure" type="aixm:StandardInstrumentDeparturePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="sector" type="aixm:NavigationAreaSectorPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <choice>
            <element name="centrePoint_fixDesignatedPoint" type="aixm:DesignatedPointPropertyType" nillable="true" minOccurs="0" />
            <element name="centrePoint_navaidSystem" type="aixm:NavaidPropertyType" nillable="true" minOccurs="0" />
            <element name="centrePoint_position" type="aixm:PointPropertyType" nillable="true" minOccurs="0" />
            <element name="centrePoint_runwayPoint" type="aixm:RunwayCentrelinePointPropertyType" nillable="true" minOccurs="0" />
            <element name="centrePoint_aimingPoint" type="aixm:TouchDownLiftOffPropertyType" nillable="true" minOccurs="0" />
            <element name="centrePoint_airportReferencePoint" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" />
        </choice>
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
navigationAreaType aixm:navigationAreaType 0 (1)
minimumCeiling aixm:minimumCeiling 0 (1)
minimumVisibility aixm:minimumVisibility 0 (1)
departure aixm:departure 0 1
sector aixm:sector 0 unbounded
centrePoint_fixDesignatedPoint aixm:centrePoint_fixDesignatedPoint 0 (1)
centrePoint_navaidSystem aixm:centrePoint_navaidSystem 0 (1)
centrePoint_position aixm:centrePoint_position 0 (1)
centrePoint_runwayPoint aixm:centrePoint_runwayPoint 0 (1)
centrePoint_aimingPoint aixm:centrePoint_aimingPoint 0 (1)
centrePoint_airportReferencePoint aixm:centrePoint_airportReferencePoint 0 (1)
annotation aixm:annotation 0 unbounded
