Definition Type: Group
Name: NavigationAreaRestrictionPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

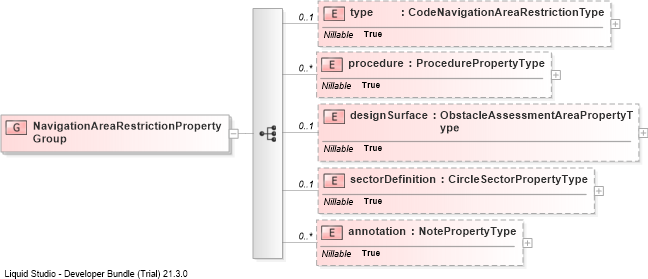

Collapse XSD Schema Diagram:
Drilldown into annotationDrilldown into sectorDefinitionDrilldown into designSurfaceDrilldown into procedureDrilldown into typeXSD Diagram of NavigationAreaRestrictionPropertyGroup
Collapse XSD Schema Code:
<group name="NavigationAreaRestrictionPropertyGroup">
    <sequence>
        <element name="type" type="aixm:CodeNavigationAreaRestrictionType" nillable="true" minOccurs="0" />
        <element name="procedure" type="aixm:ProcedurePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="designSurface" type="aixm:ObstacleAssessmentAreaPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="sectorDefinition" type="aixm:CircleSectorPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
type aixm:type 0 (1)
procedure aixm:procedure 0 unbounded
designSurface aixm:designSurface 0 1
sectorDefinition aixm:sectorDefinition 0 1
annotation aixm:annotation 0 unbounded
