Documentation for AIXM 5.1.1
Definition Type: Element
Name: NavigationAreaSector
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:NavigationAreaSectorType
Containing Schema: AIXM_Features.xsd
Abstract

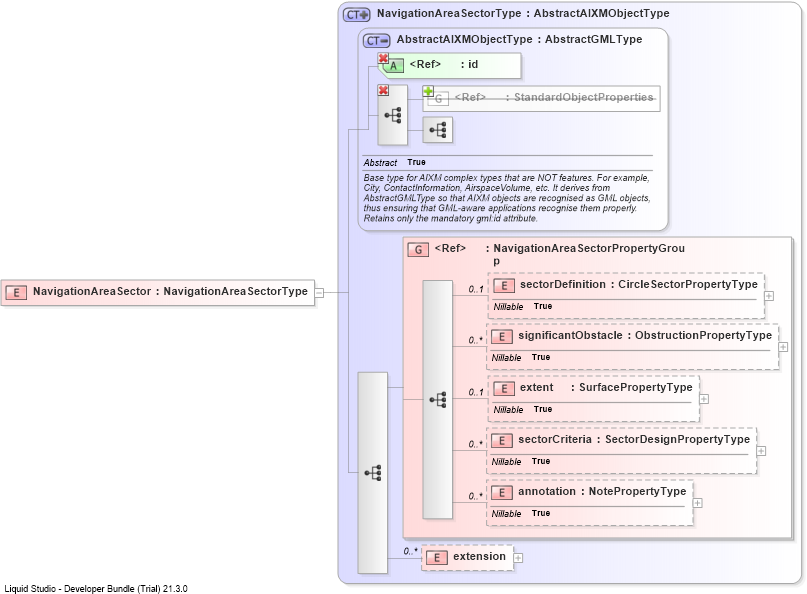

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into annotationDrilldown into sectorCriteriaDrilldown into extentDrilldown into significantObstacleDrilldown into sectorDefinitionDrilldown into NavigationAreaSectorPropertyGroupDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMObjectTypeDrilldown into NavigationAreaSectorTypeXSD Diagram of NavigationAreaSector
Collapse XSD Schema Code:
<element name="NavigationAreaSector" type="aixm:NavigationAreaSectorType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
sectorDefinition aixm:sectorDefinition 0 1
significantObstacle aixm:significantObstacle 0 unbounded
extent aixm:extent 0 1
sectorCriteria aixm:sectorCriteria 0 unbounded
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:NavigationAreaSectorPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
